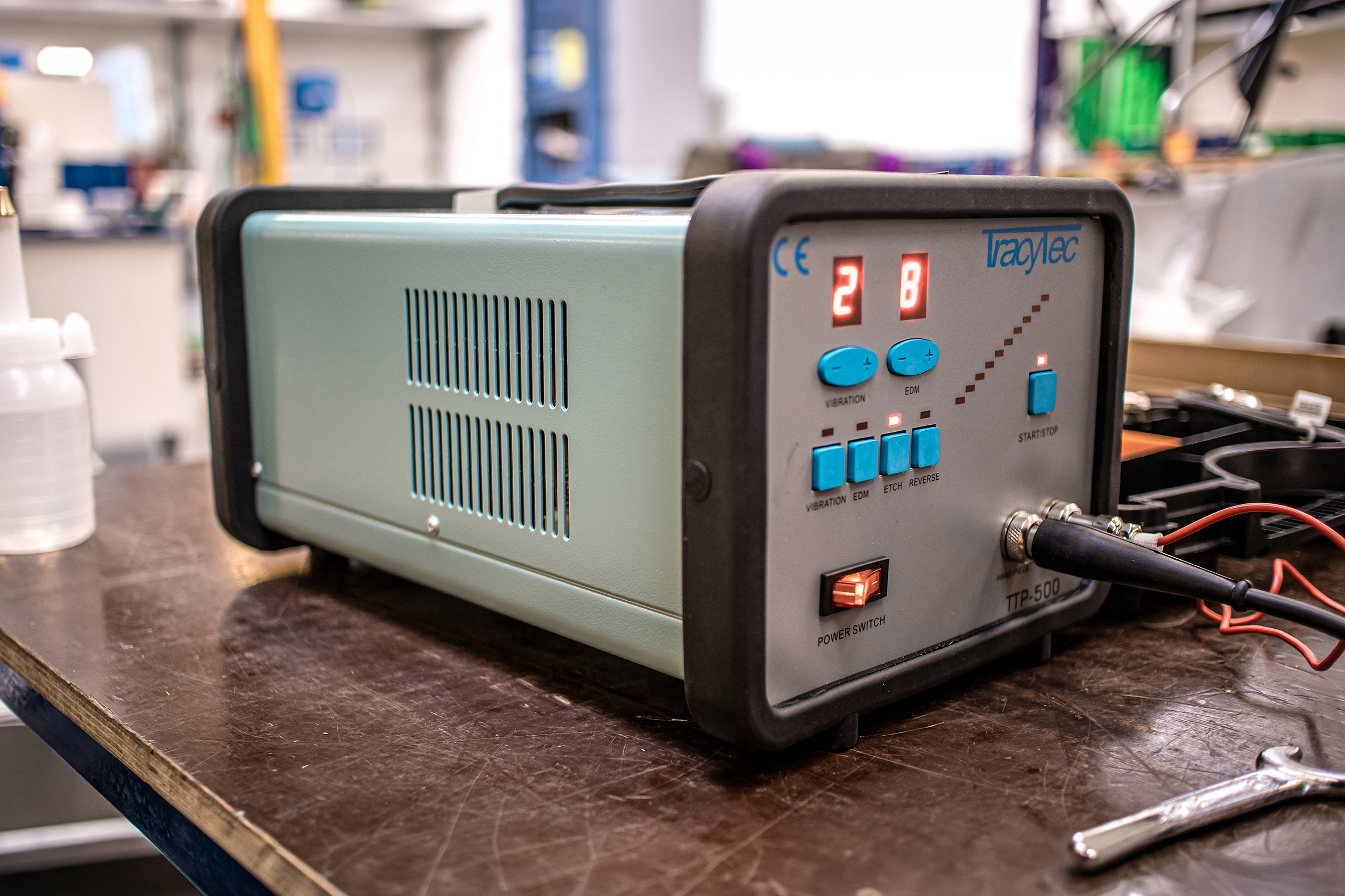

TTP-500
Mould Finisher

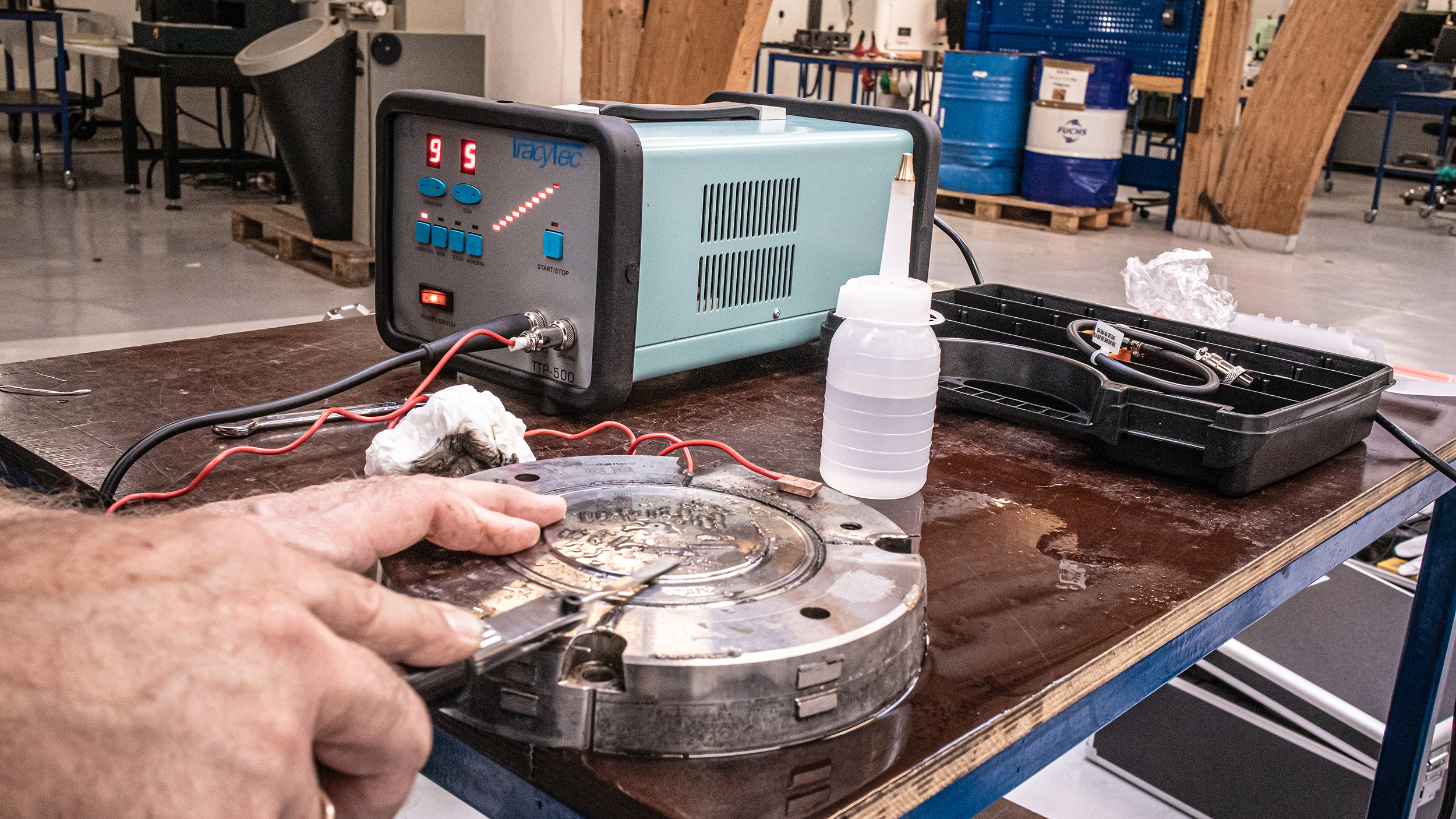

The TTP-500 is a multifunctional ultrasonic unit operating with vibrations in the range of 20,000 Hz. Its powerful ultrasonic polishing function allows material to be removed efficiently with diamond files and other polishing tools.
Key Features
✓
Powerful ultrasonic polishing
✓
Handheld EDM functionality
✓
99-level textured surface repair
✓
Reverse EDM tungsten coating
✓
Multiple finishing applications
What's included

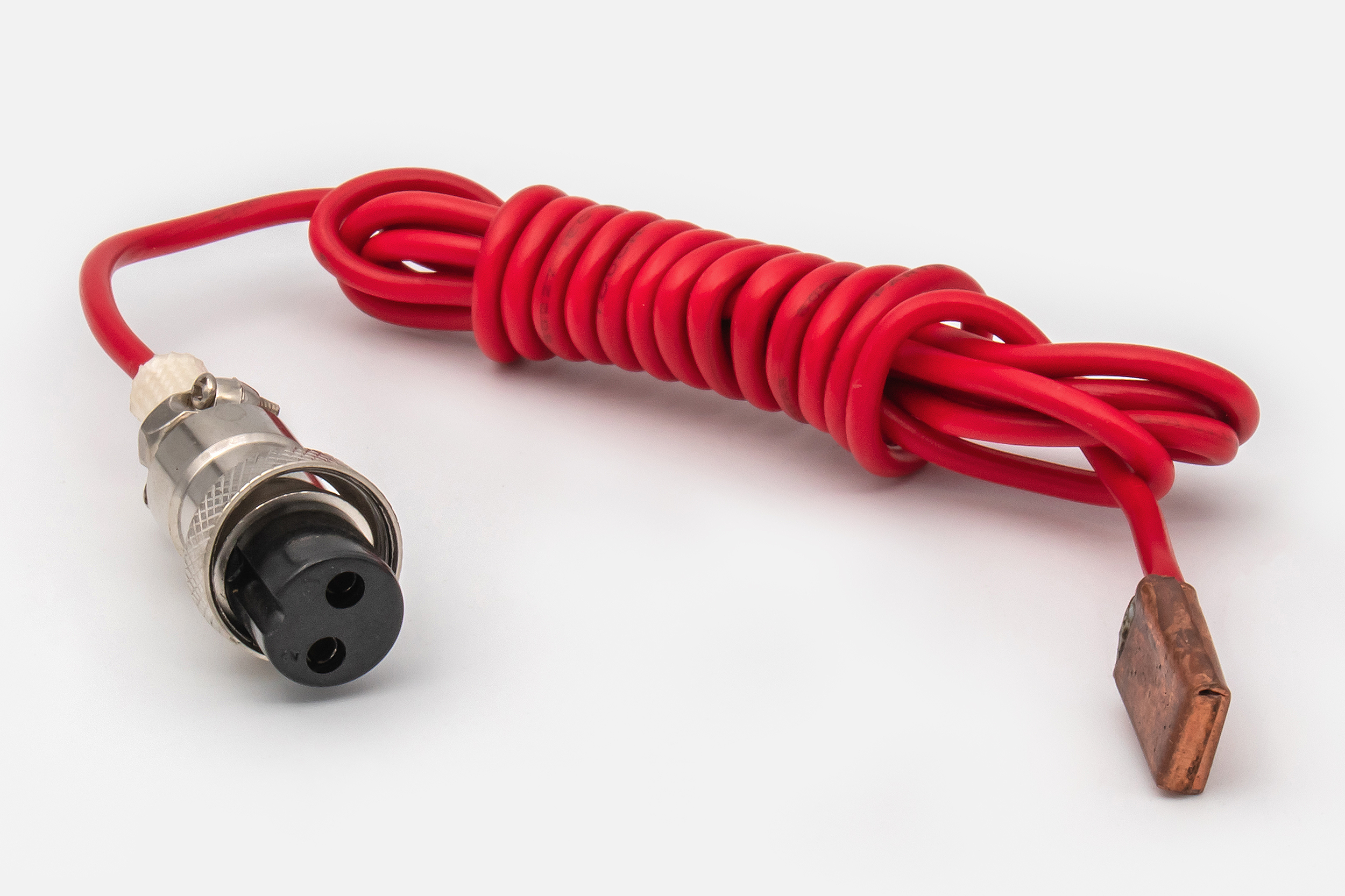

Ground Cable

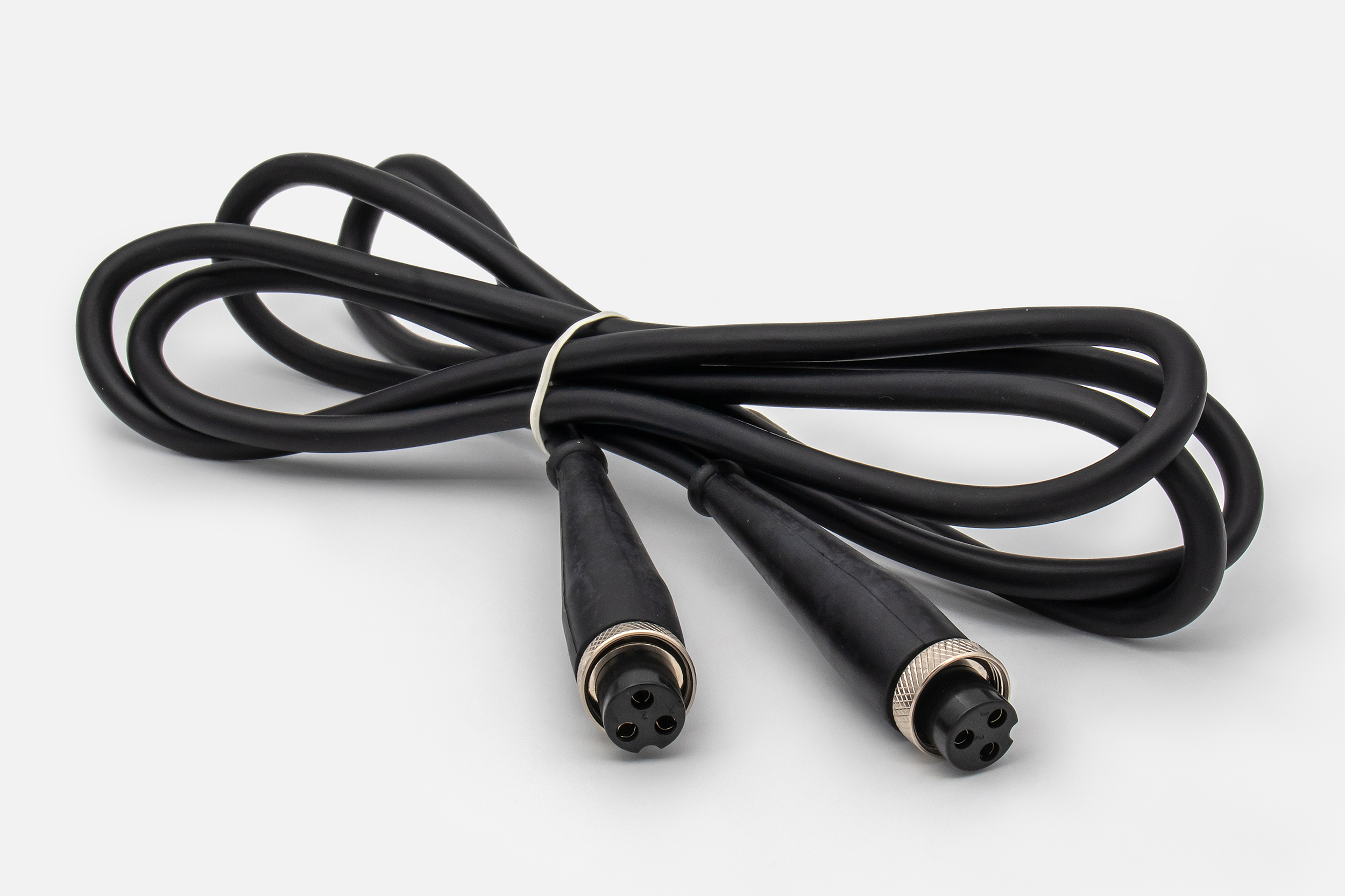

Long Hand Piece Cable

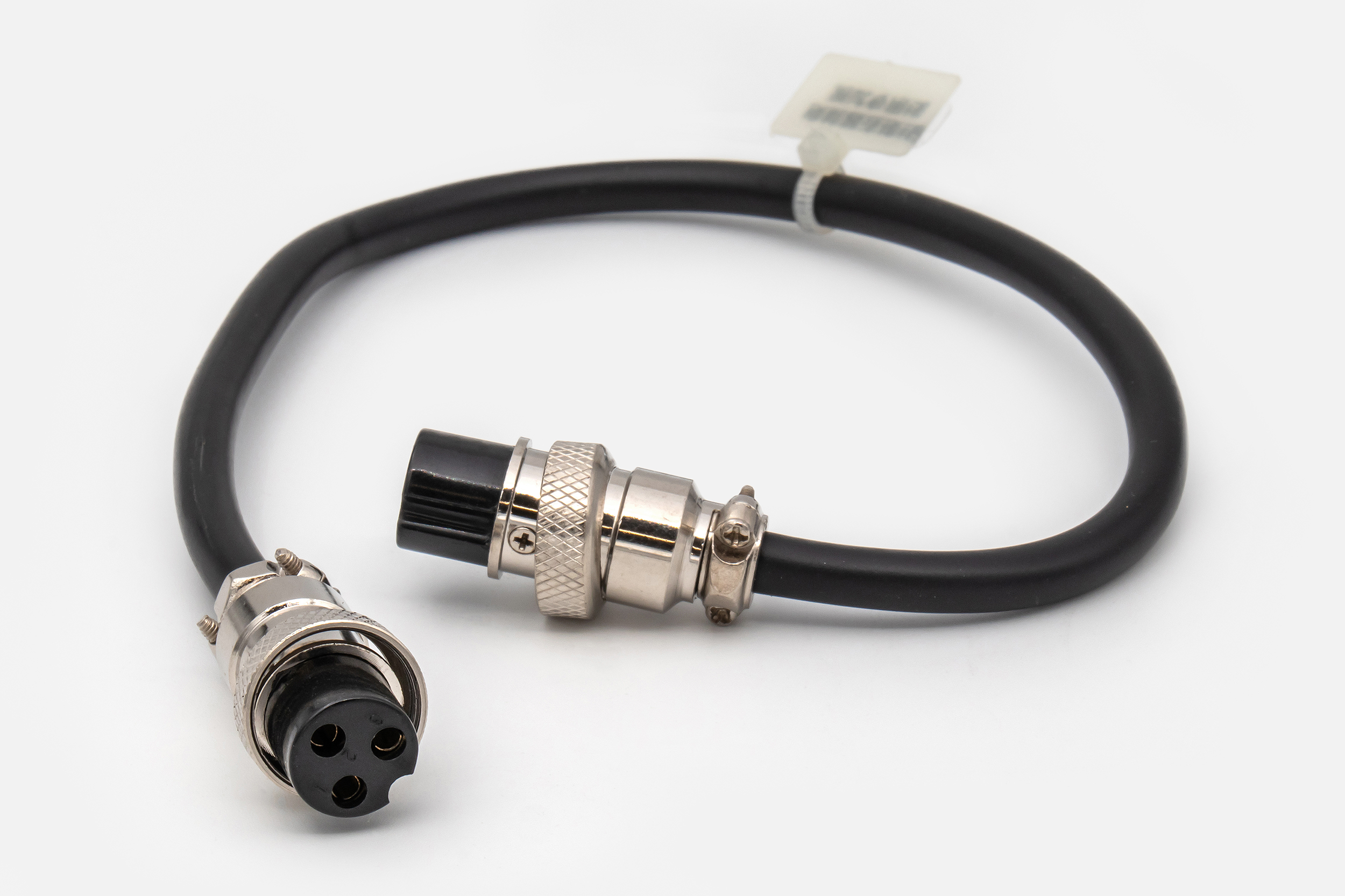

Short Hand Piece Cable

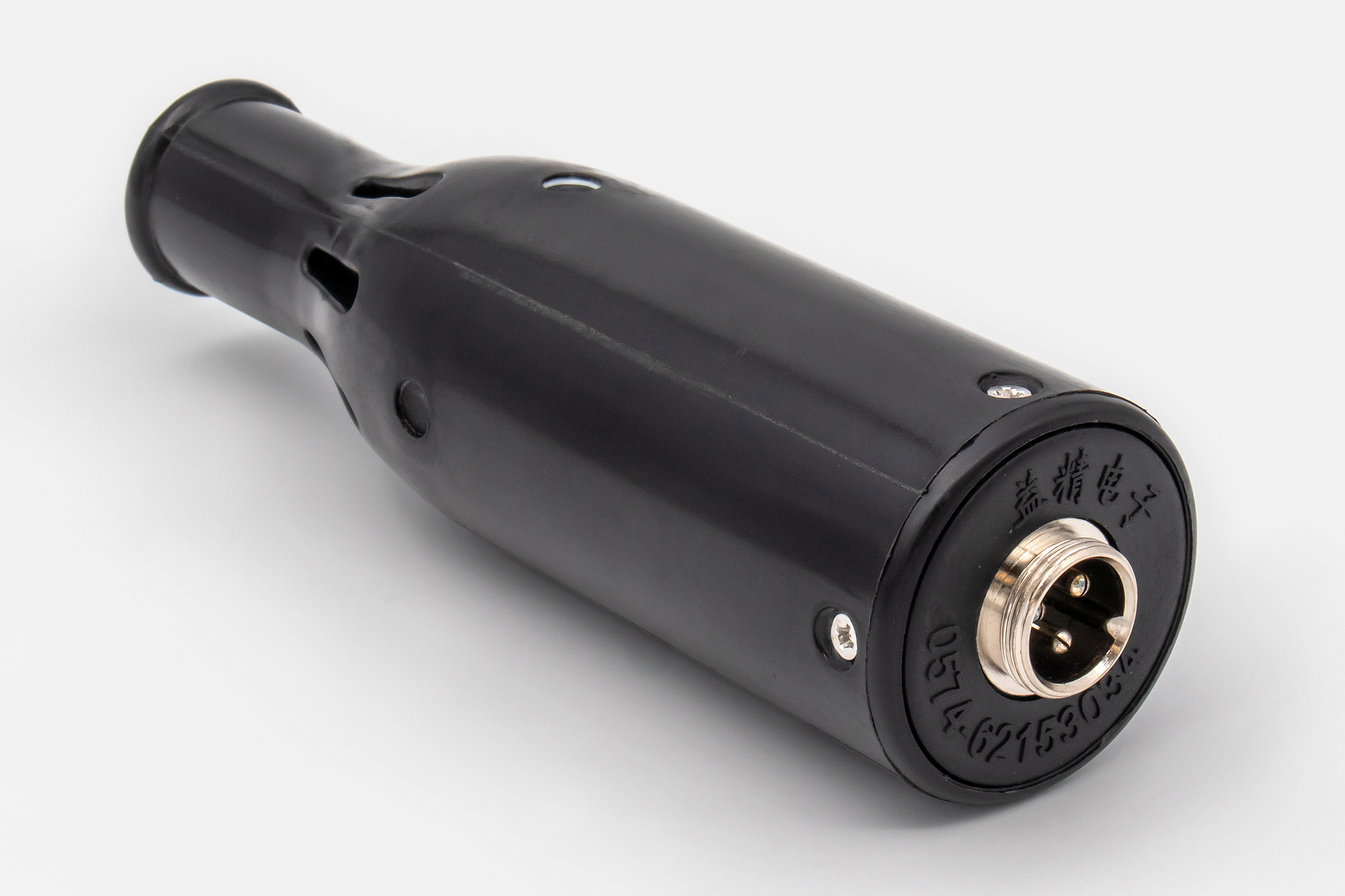

Ultrasonic Hand Piece

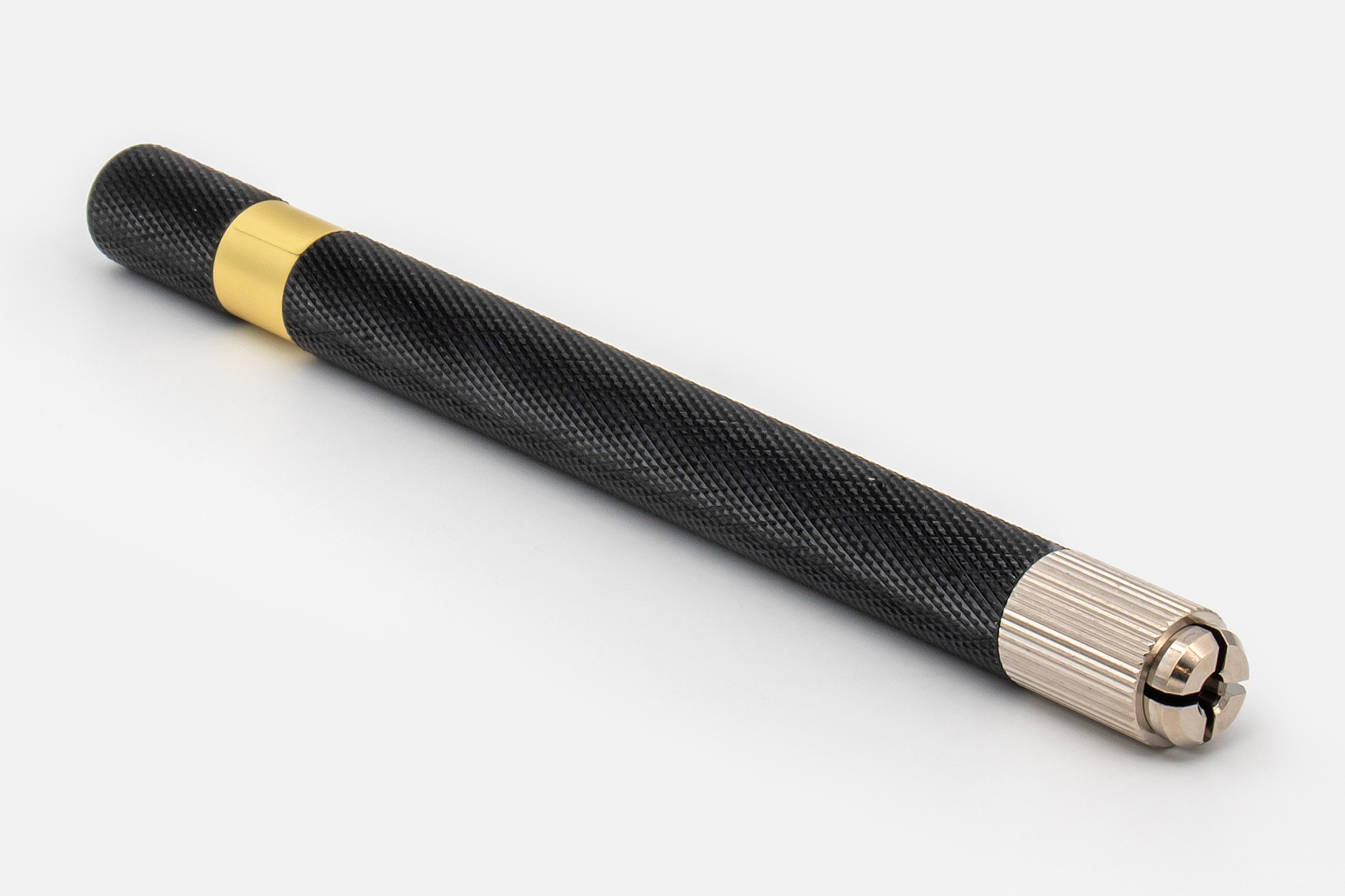

Hand Piece

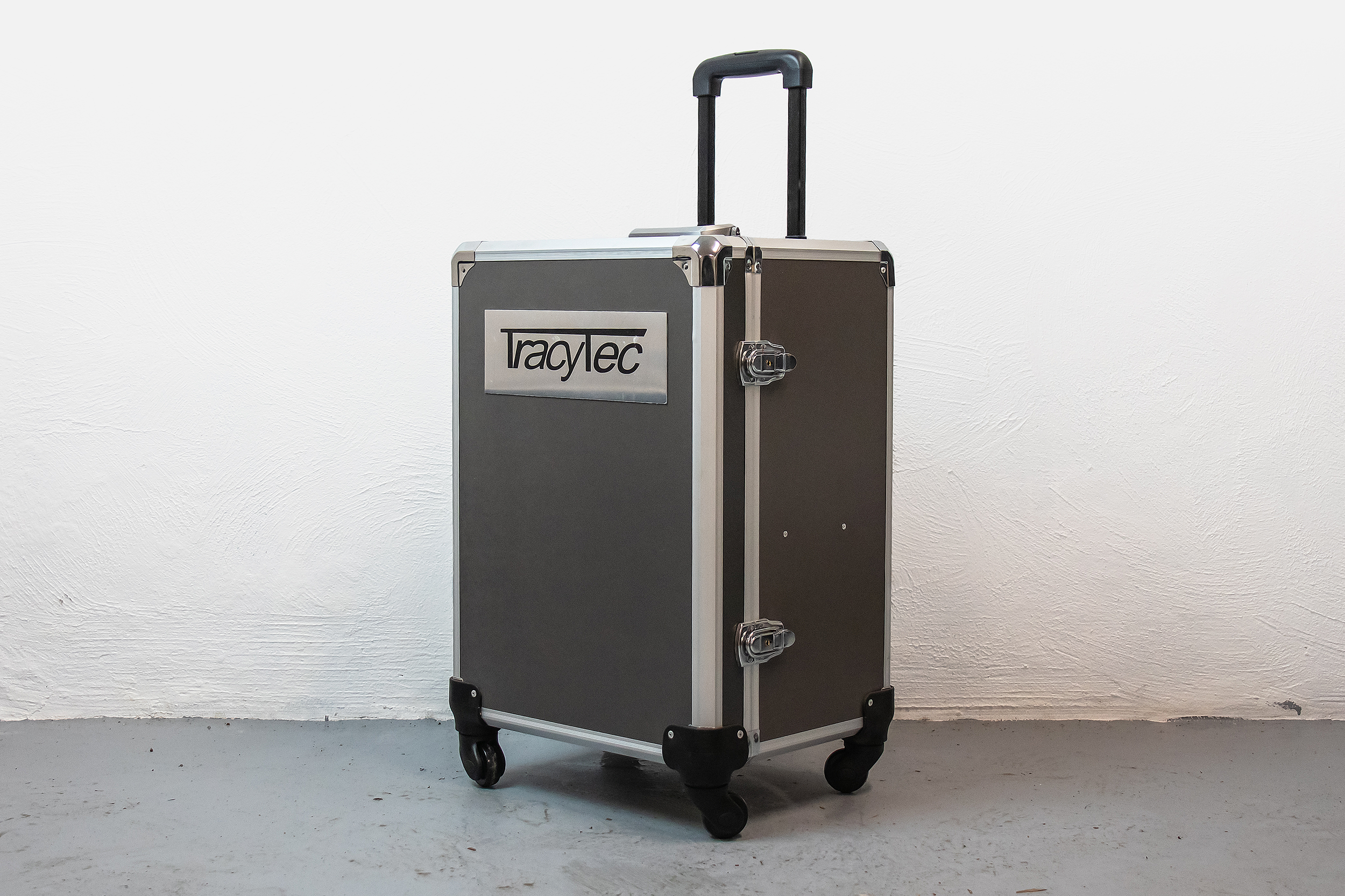

Suitcase
Specifications
Power voltage
230 V, ground
Ultrasound output
60 W, 26-35 KHz, 9 NC levels
EDM output
160 W, 5 NC levels
Dimensions
340 × 185× 140 mm
Weight
6 kg
EDM Functionality
The handheld EDM function can remove material from rough surfaces and can work faster than conventional abrasive stones in suitable applications. It can also be used for applications such as opening gates, creating undercuts and producing markings.
At the lowest power setting, the process can achieve a surface roughness of Ra 0.2, according to the supplied product material.
Textured Surface Repair
The TTP-500 features 99 power levels, allowing precise adjustment when repairing textured and spark-eroded surfaces. This makes it possible to reproduce and repair damaged areas with a high degree of control.
Reverse EDM
In Reverse EDM mode, electrode material is deposited onto the workpiece rather than removed from it. This function is commonly used for applying tungsten coatings to mould surfaces.

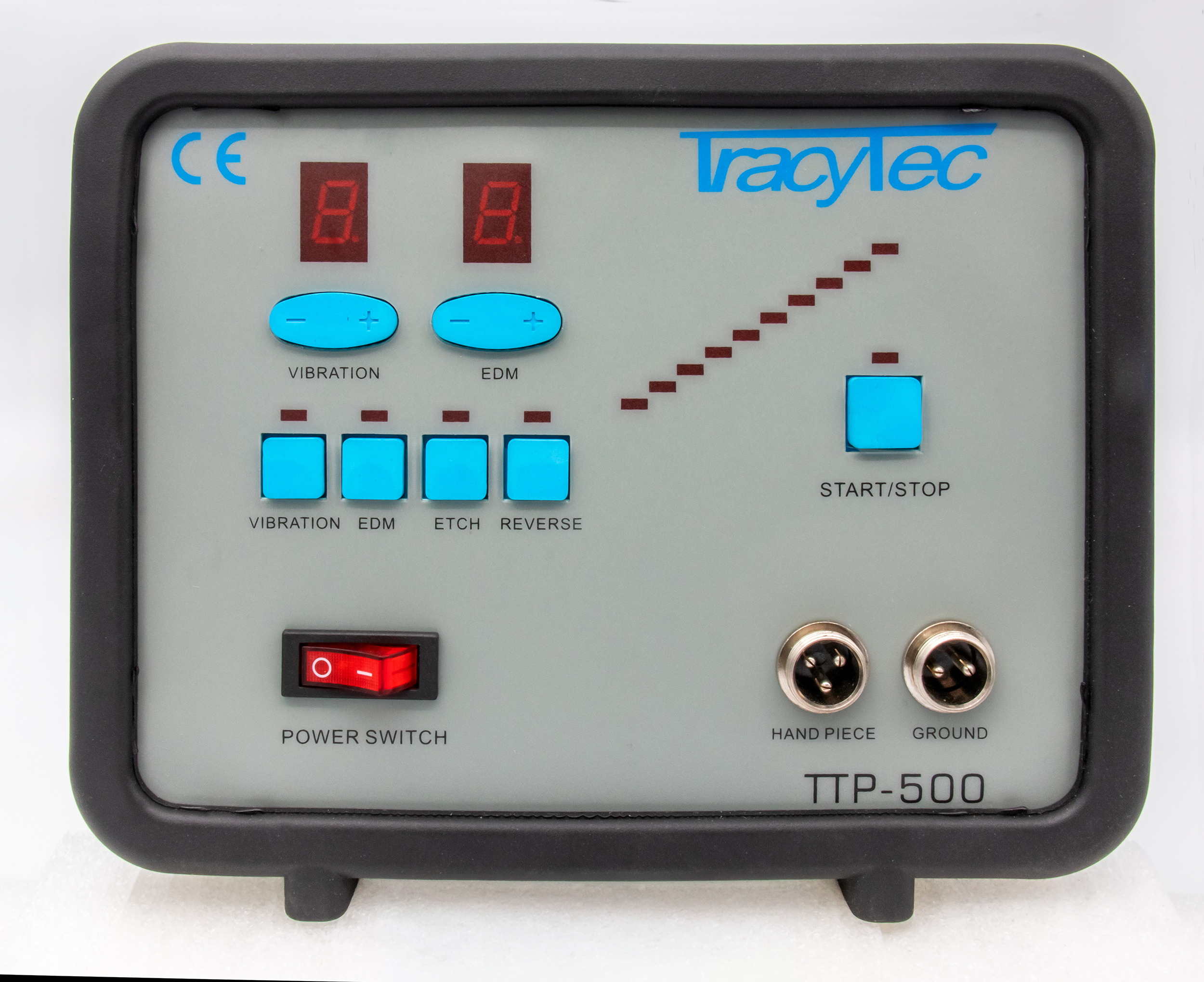

Four Functions in One Machine
With ultrasonic polishing, EDM, textured surface repair and Reverse EDM, the TTP-500 provides toolmakers with a versatile solution for finishing, repair and surface treatment.
