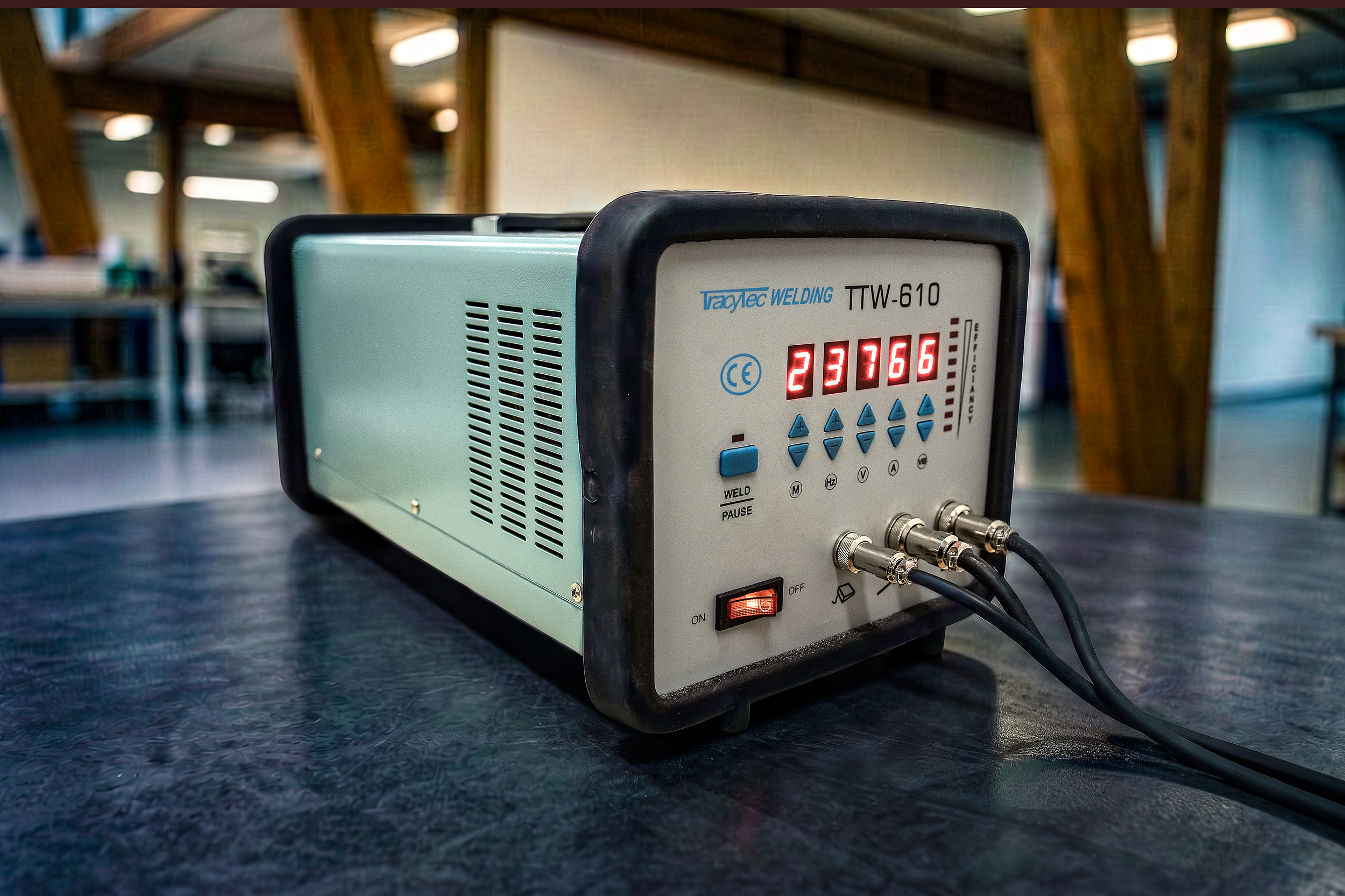

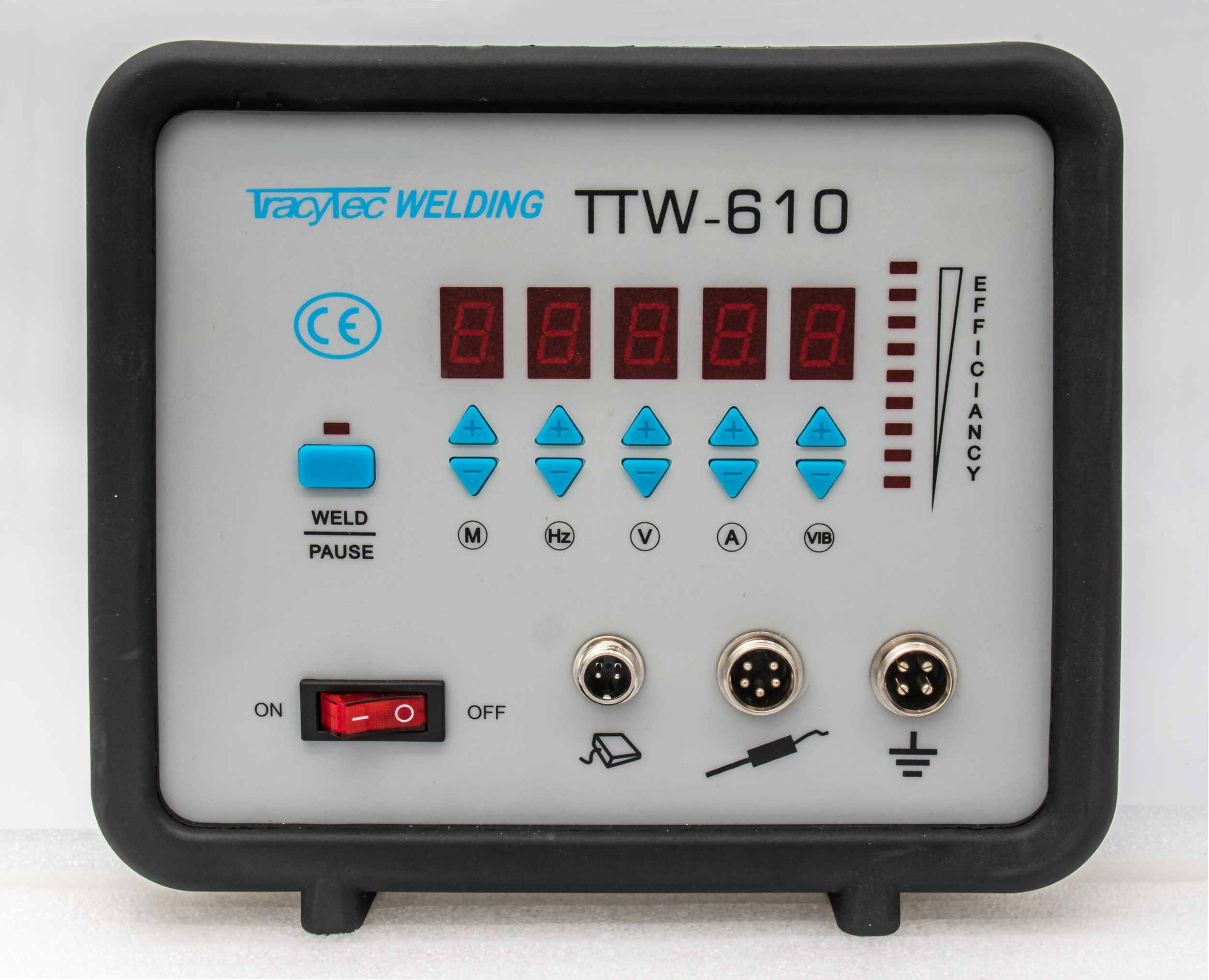

TTW-610
Micro TIG Deposit Welder
The TTW-610 is a multifunctional deposit welding machine designed to solve demanding mould and tool repair tasks. It can deposit material precisely onto steel, aluminium, copper and other materials, including deep ribs and areas that can be difficult to reach with conventional repair methods.
Key Features
✓
Precision deposit welding
✓
Welds steel, aluminium and copper
✓
Ultrasonic polishing
✓
EDM and EDM etching
✓
Reverse EDM tungsten coating
✓
Reaches deep and difficult areas
What's included

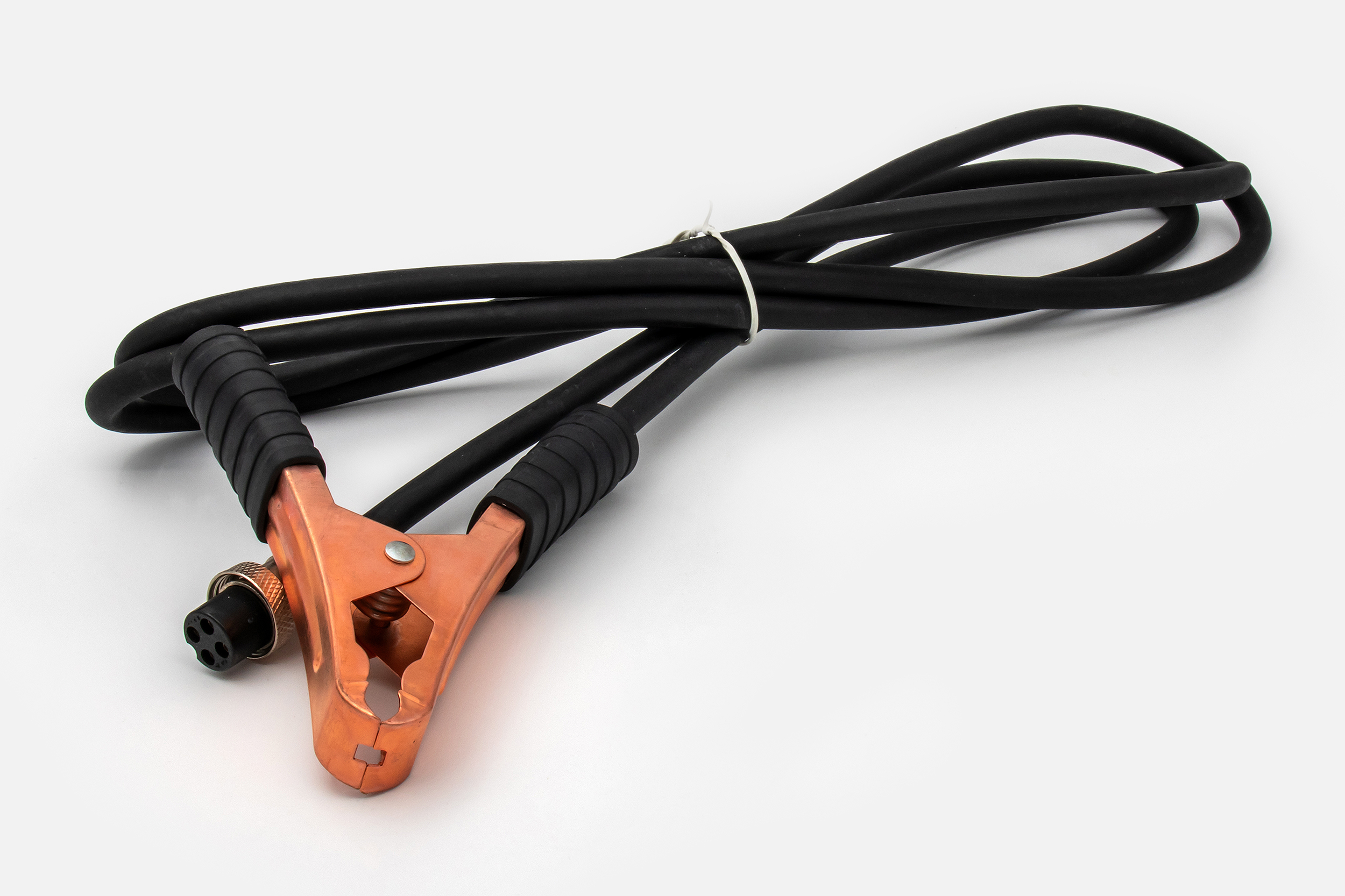

Ground Cable

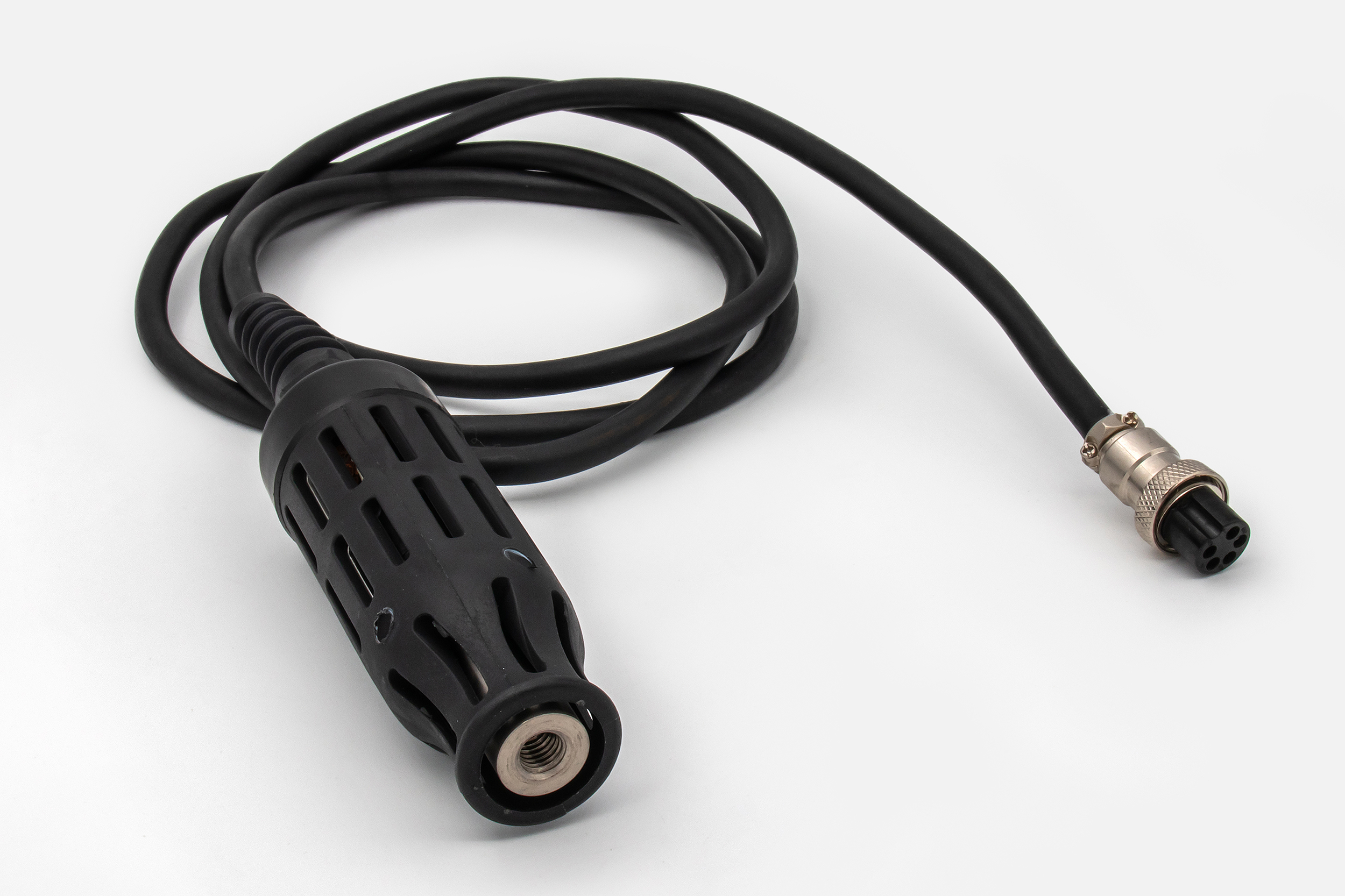

Tool Handle

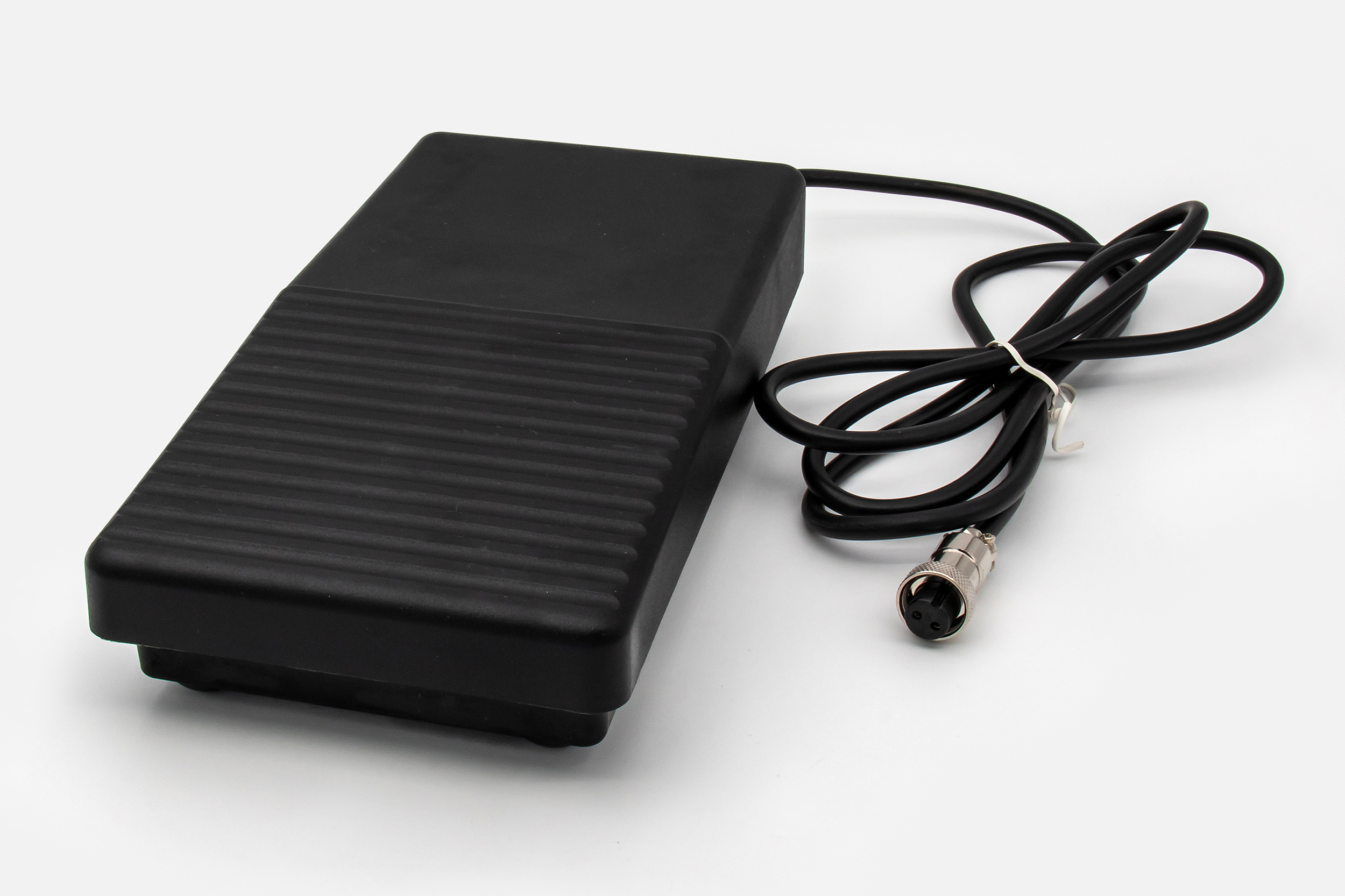

Foot Switch

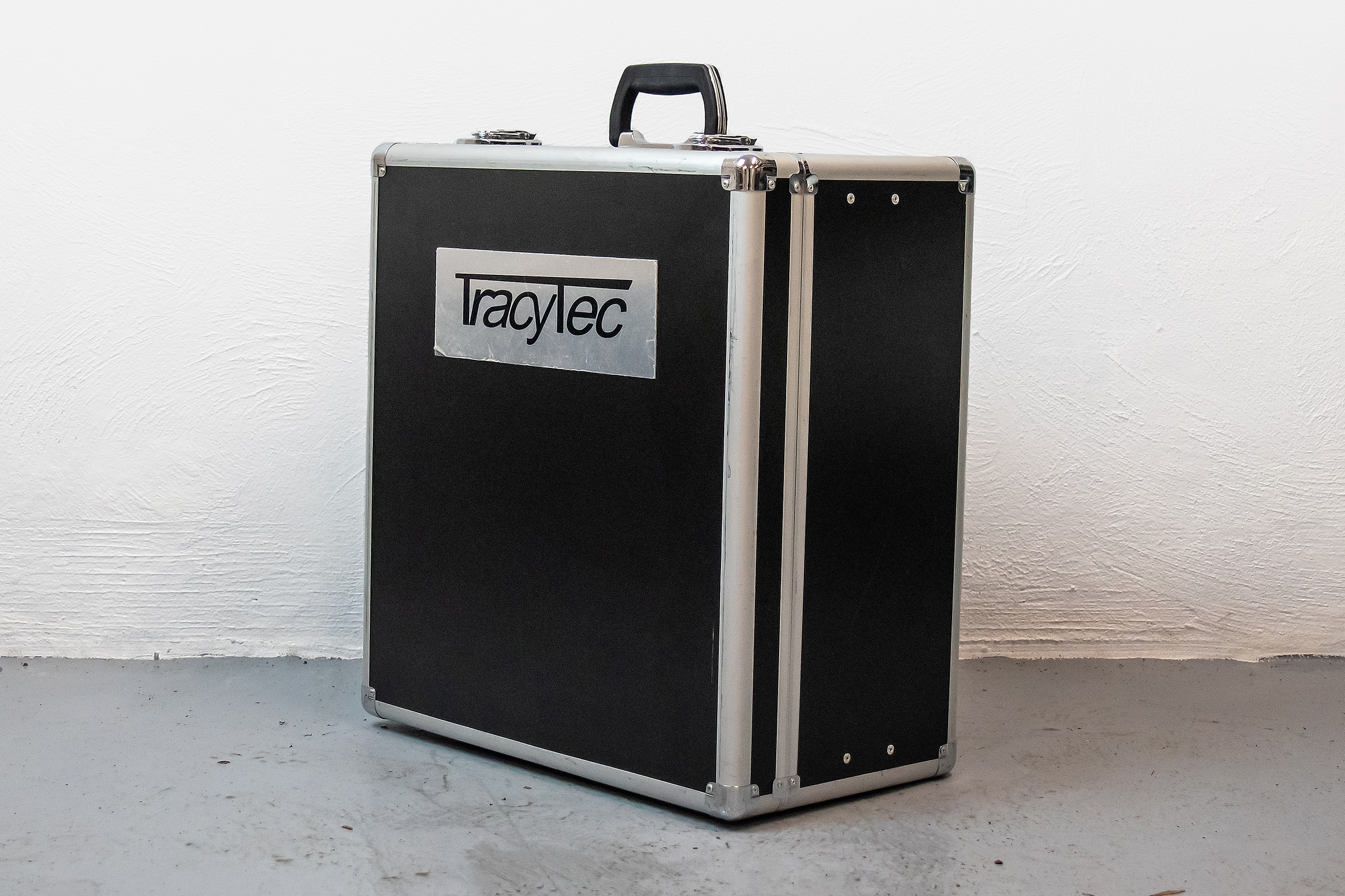

Suitcase
Specifications
Filler diameter
0.4-5 mm

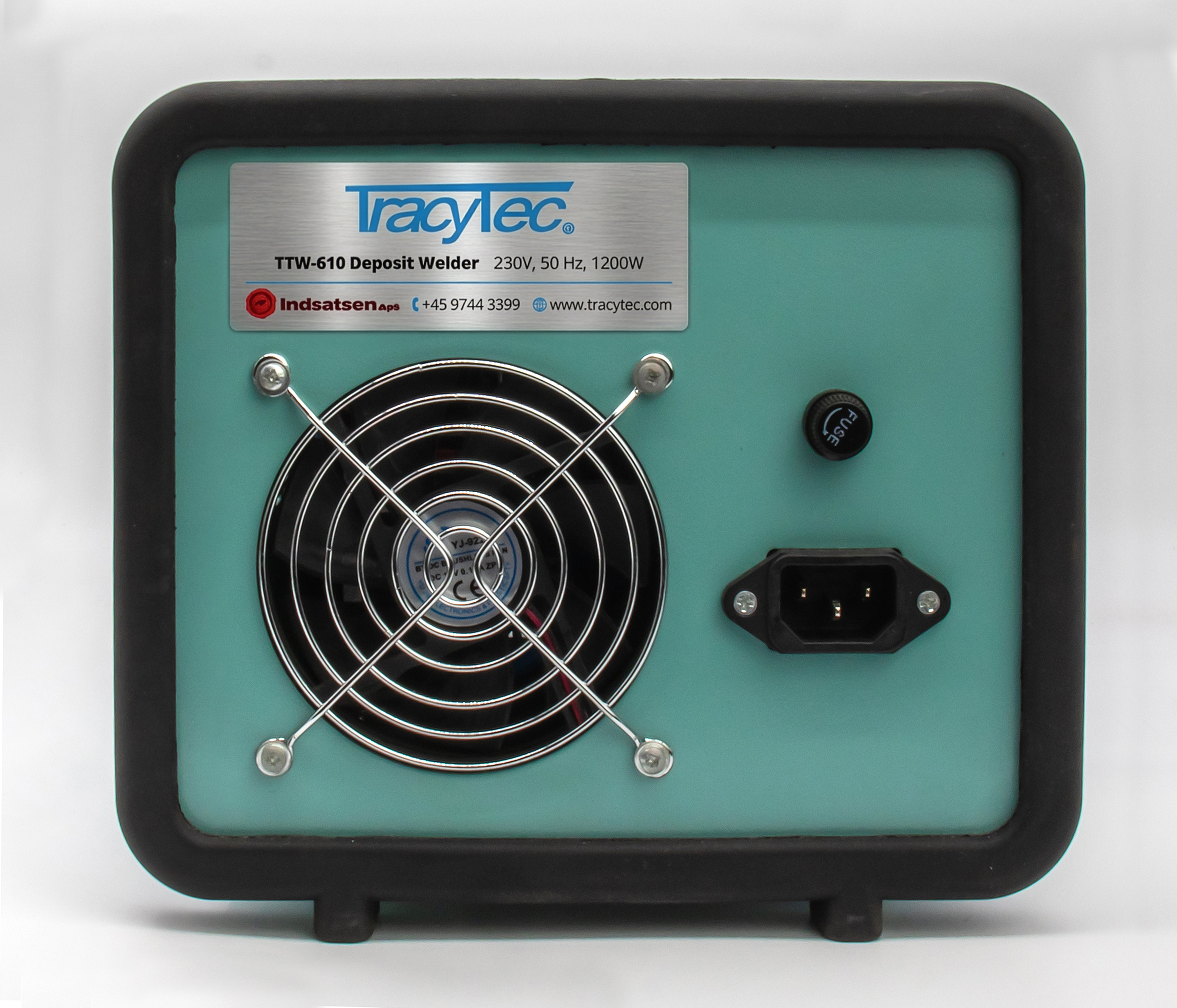

Power voltage
230V, Grounded
Frequency
50 Hz
Power consumption
1200 W
Dimensions
38? × 15? × 22? mm
Weight
? kg
Ultrasonic Polishing
The handpiece used for deposit welding can also be used for ultrasonic polishing. By changing the abrasive, the TTW-610 can efficiently remove excess material and perform detailed polishing work.
EDM Functionality
The TTW-610 can also perform EDM processes. By adding liquid or water to the work area, the welded surface can be refurbished to create a smooth EDM surface.
EDM Etching
The machine can be used for EDM etching and can help reproduce or repair spark-textured surfaces and similar etched finishes.
Reverse EDM
Using Reverse EDM, the TTW-610 can deposit electrode material onto the workpiece. This function can be used to apply relatively thick tungsten coatings to mould surfaces.
A Multifunctional Repair Tool
The TTW-610 combines welding, EDM, ultrasonic polishing and surface treatment in one machine. It can also be used for applications such as engraving, removing excess material and working on smaller surfaces and corners.
