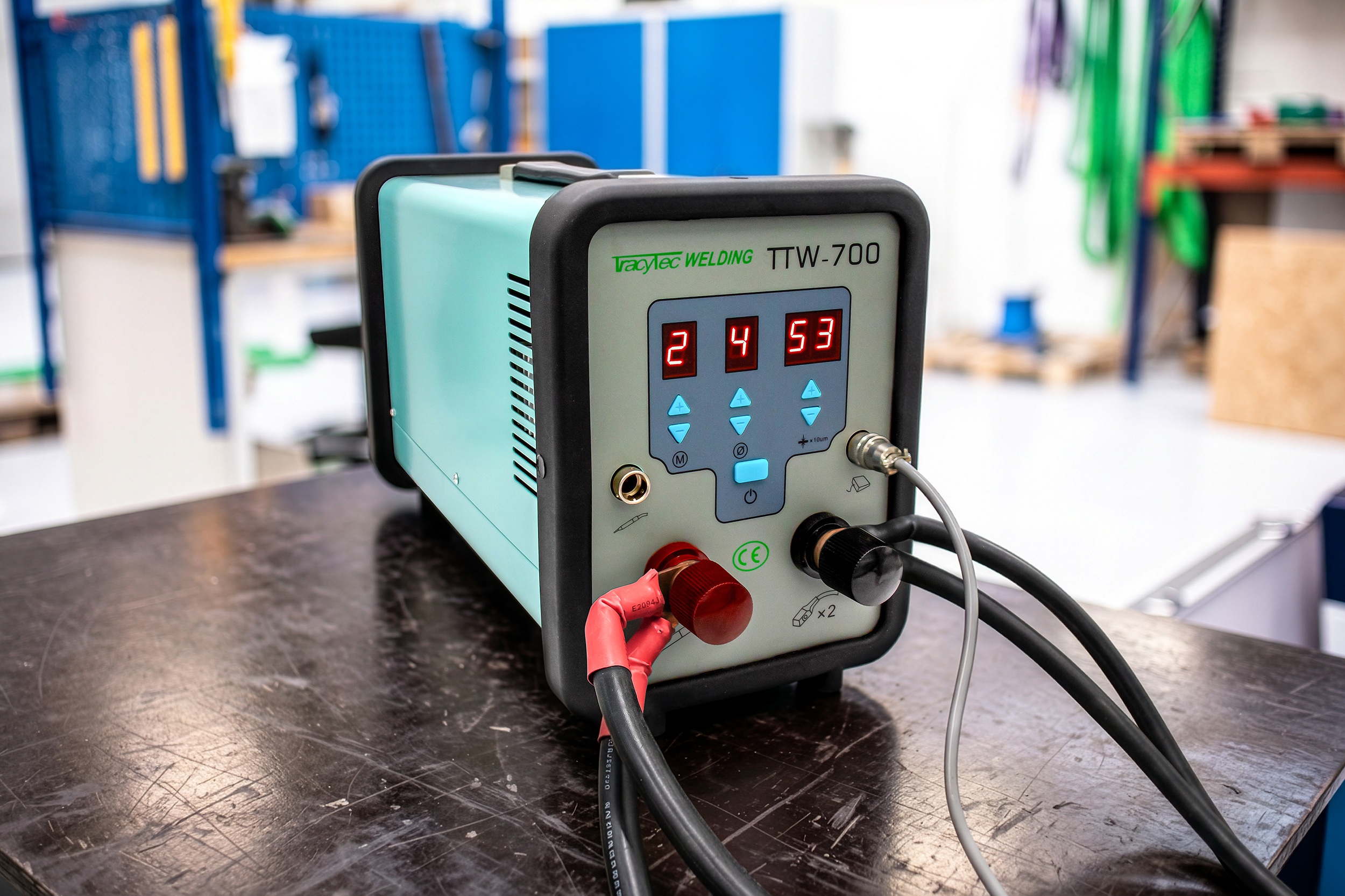

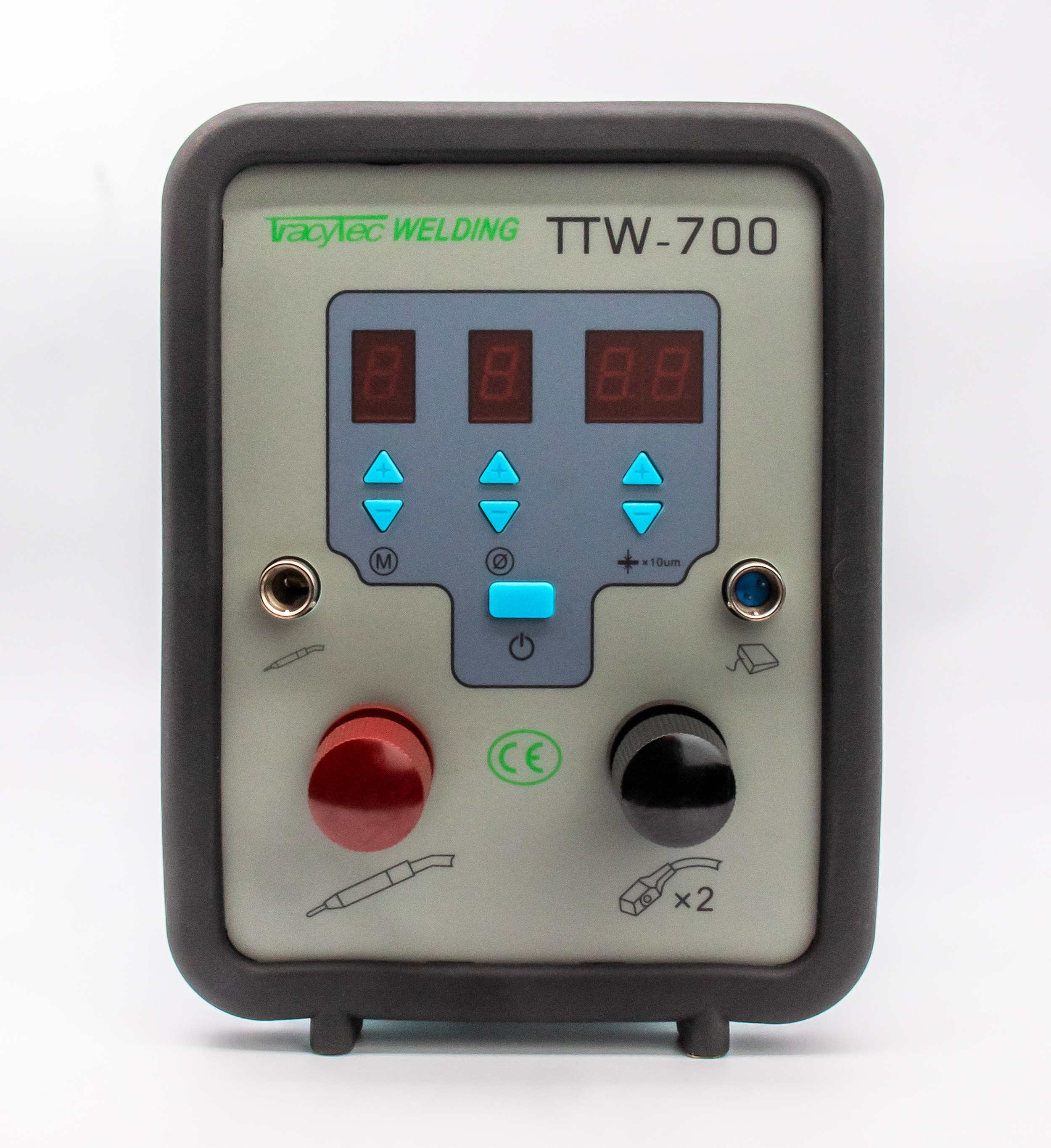

TTW-700
Micro Resistance Welder
The TTW-700 is a resistance welding machine designed to provide a simple and efficient solution for mould and tool repair. Resistance welding combines controlled heat and pressure to create a strong and durable joint.
Key Features
✓
Welds many types of ferrous metals
✓
Durable, high-quality repairs
✓
Welding sheets up to 0.5 mm
✓
Precise sheets up to 0.2 mm
✓
Easy to use
What's included

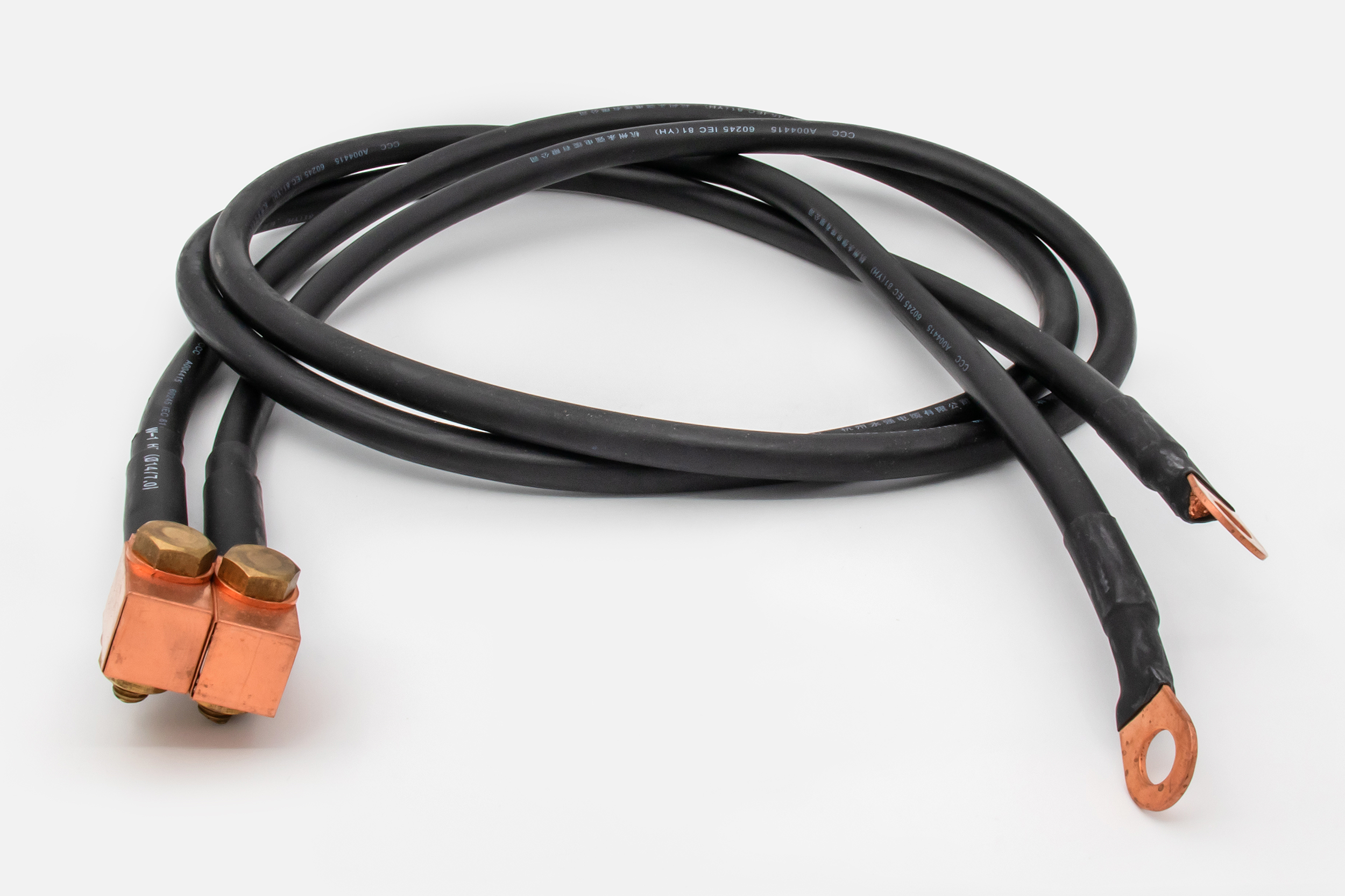

Ground Cable

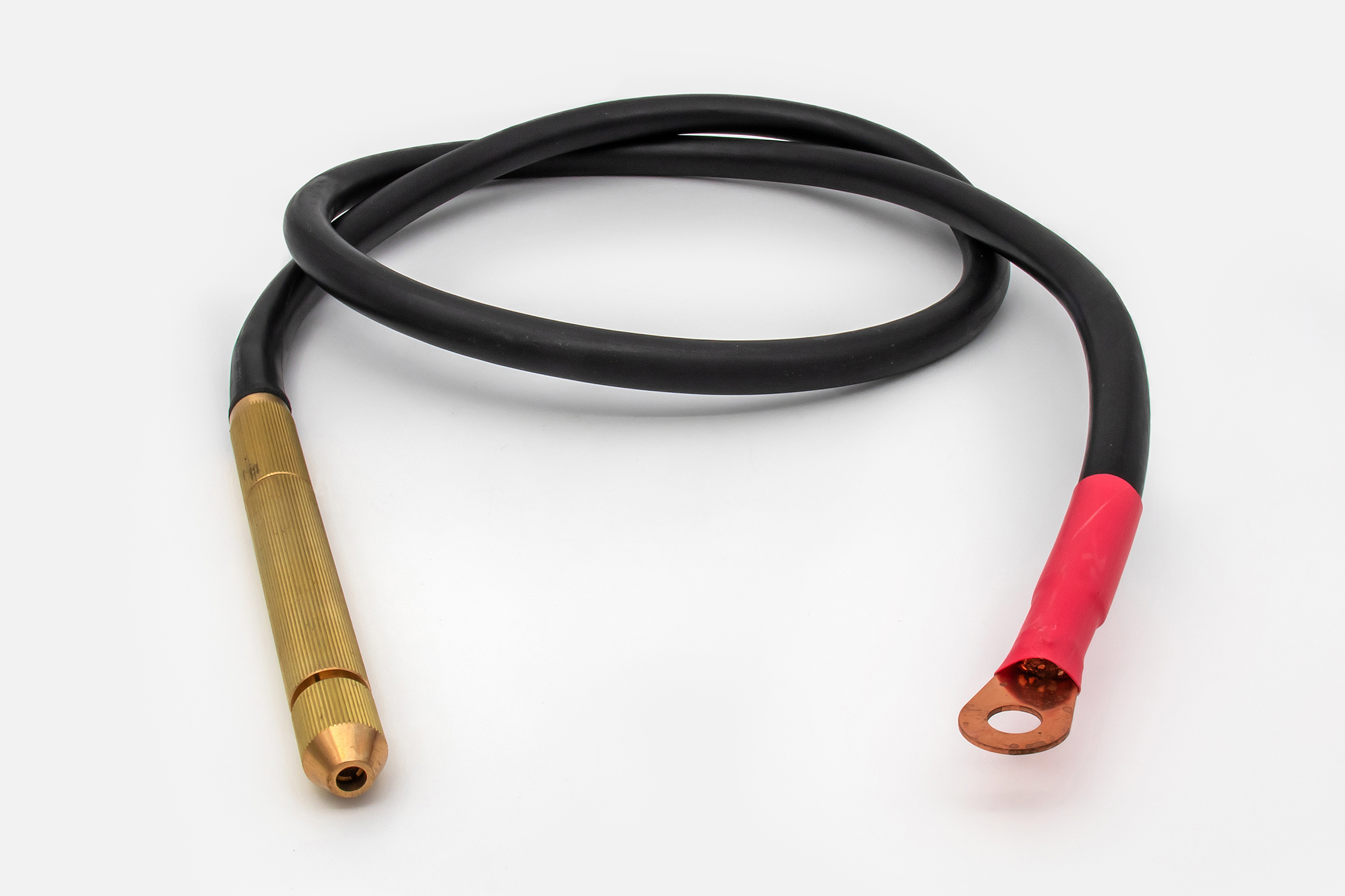

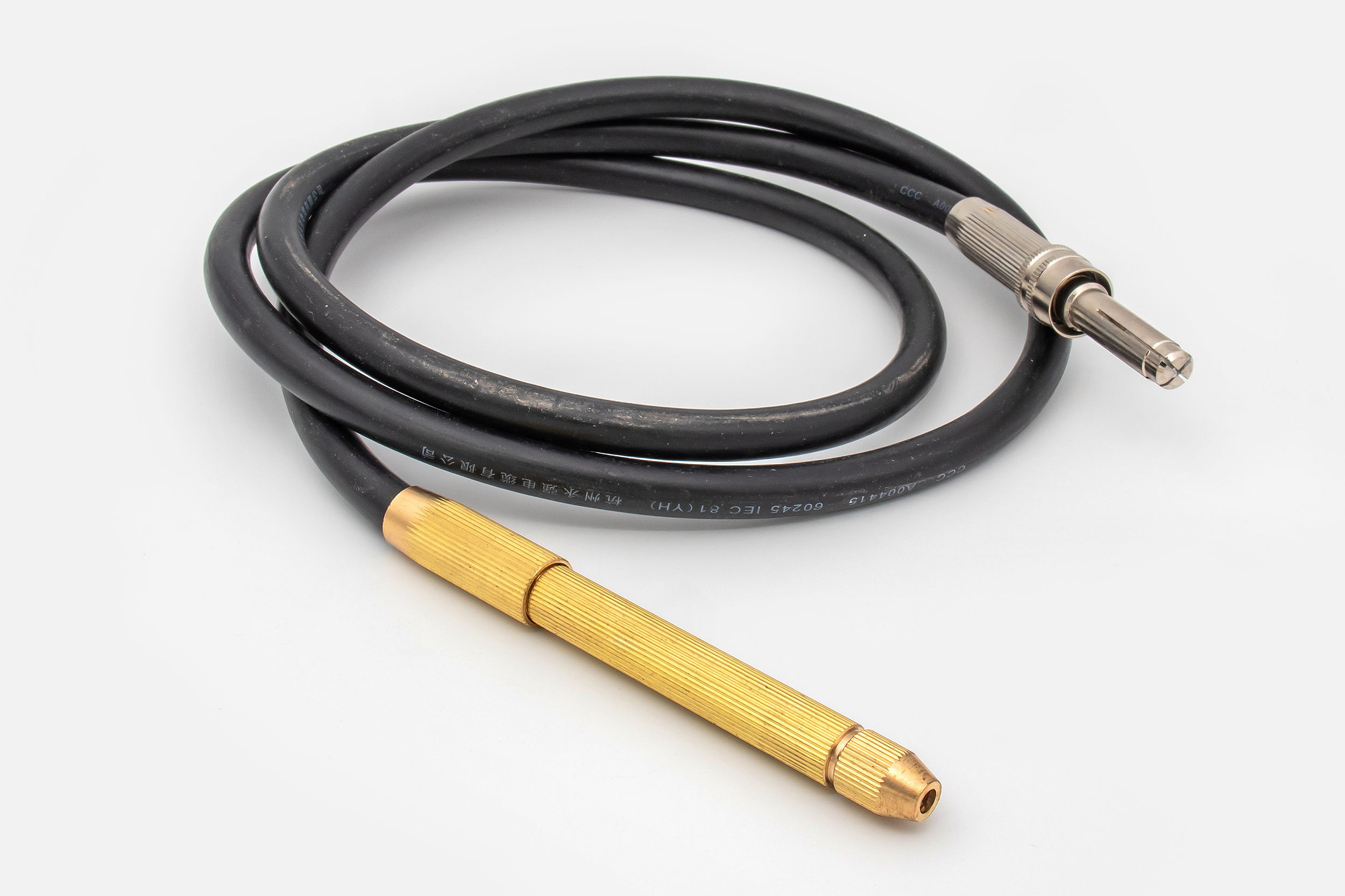

Welding Cable

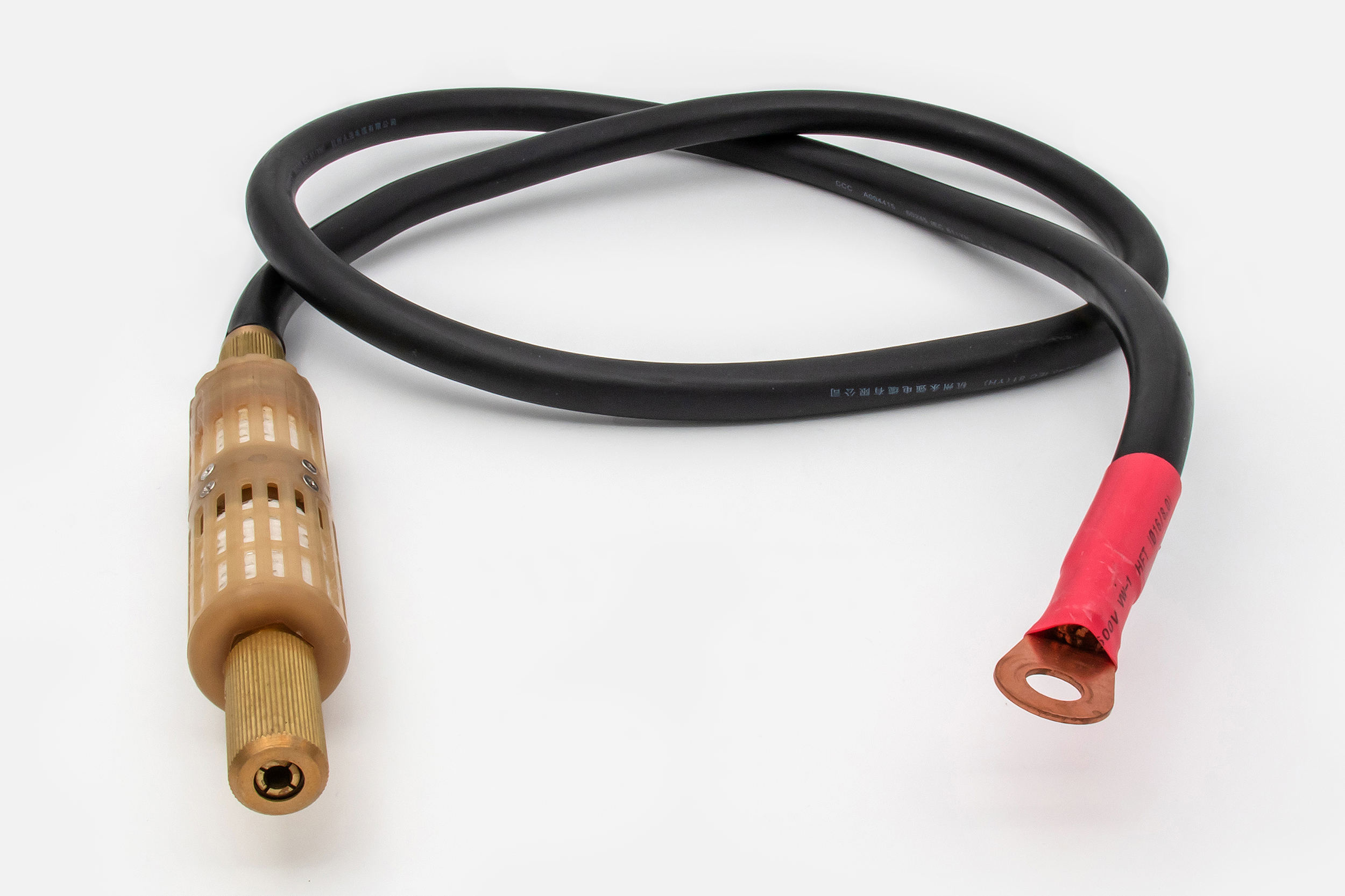

Welding Cable
Resistance Welder

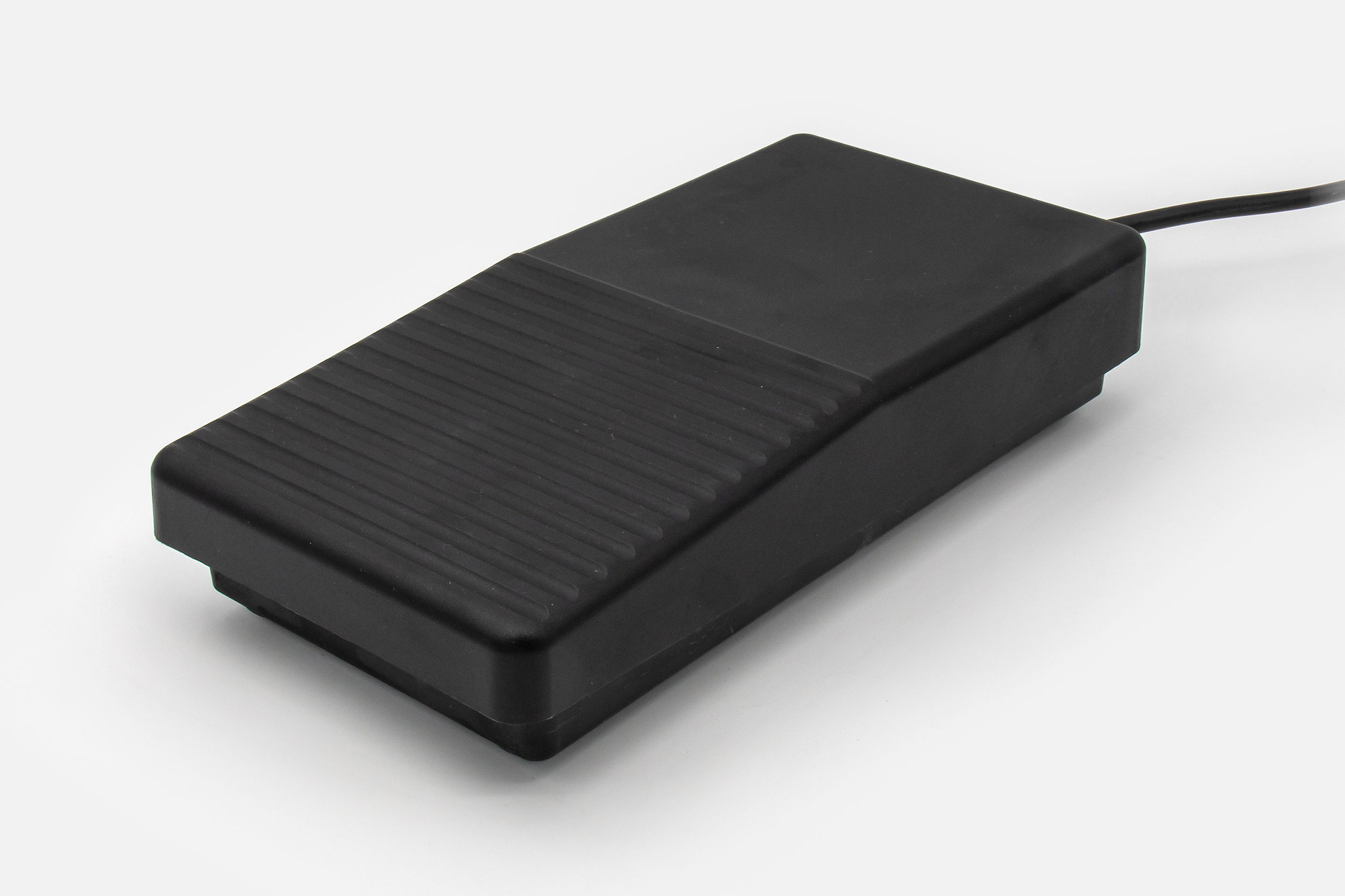

Foot Switch

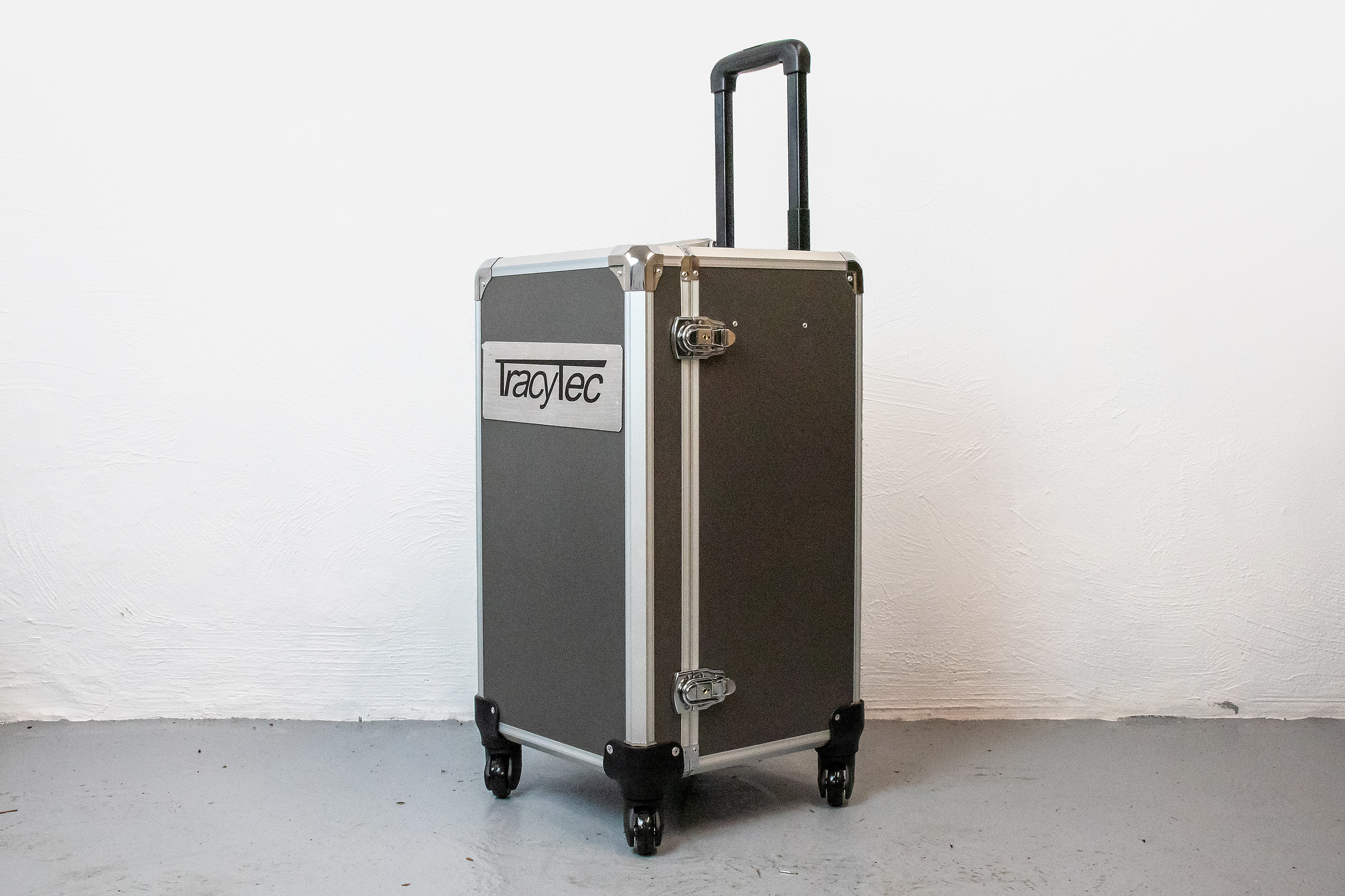

Suitcase
Specifications

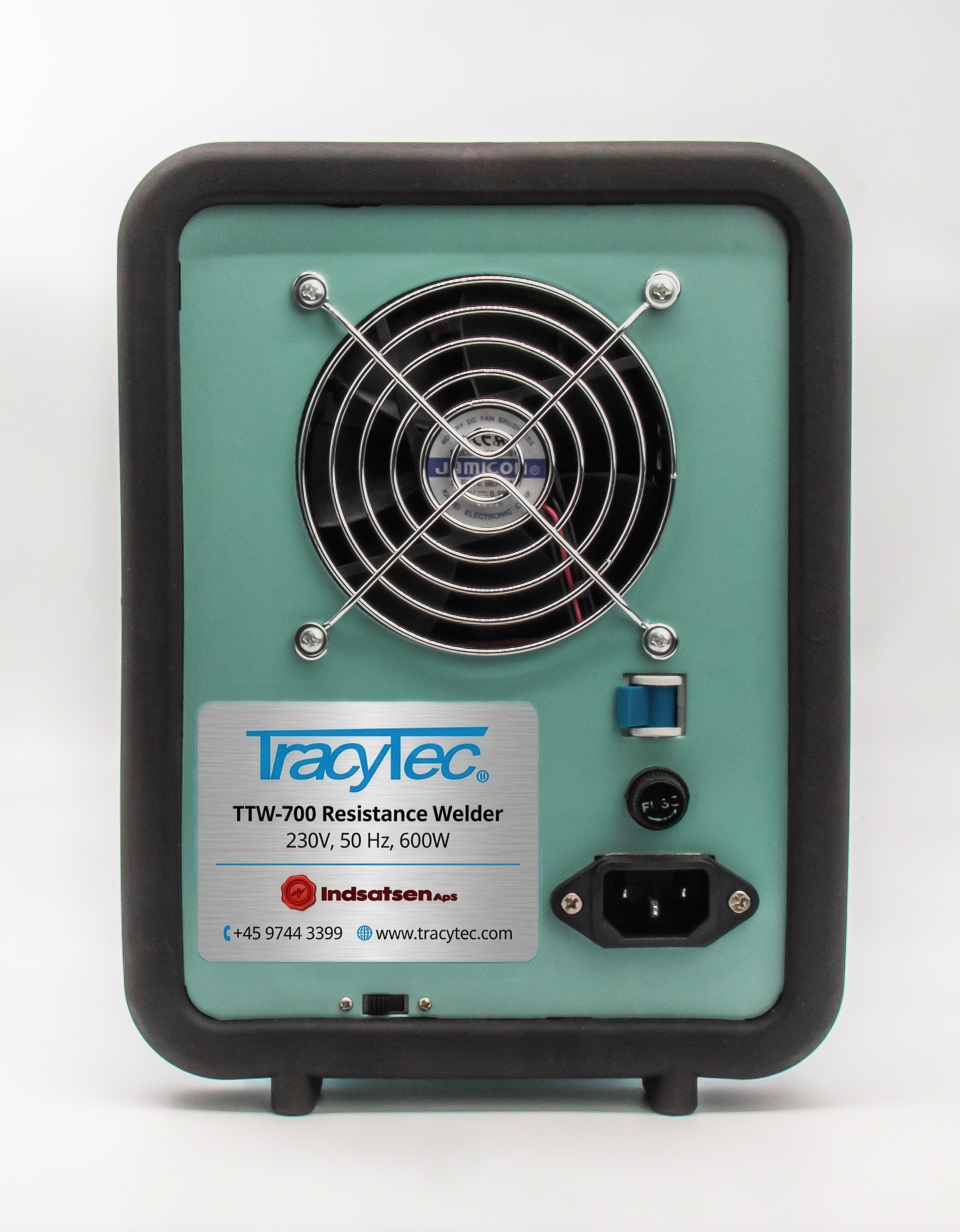

Power supply
220 V ±20 %, 50 Hz
Frequency range
3-10 Hz, automatic adjusted
Power consumption
5-600 W
Maximum instantaneous output
30 kW
Dimensions
360 × 150 × 200 mm
Weight
8 kg
Durable Repairs
The welded material becomes an integrated part of the workpiece. Repairs can subsequently be machined using conventional methods such as milling, EDM and grinding without the welded material loosening or flaking away.
Precise Material Addition
The TTW-700 can weld metal sheets from 0.03 to 0.22 mm for precise repairs. Sheets up to 0.5 mm can also be tack welded, providing flexibility for different repair requirements.
Minimal Heat Input
The welding process concentrates heat in a very small area. This minimizes heat-related damage and makes the TTW-700 particularly useful for repairing moulds, dies and tools.
No Metallurgical Change
The welded material retains the original hardness of both the foil and the base material. This also makes it possible to combine materials with different hardness levels.
Easy Mould Repair
The TTW-700 is particularly suitable for repairing wear, tears and erosion damage, as well as pressure marks and leaks along mould parting lines.
