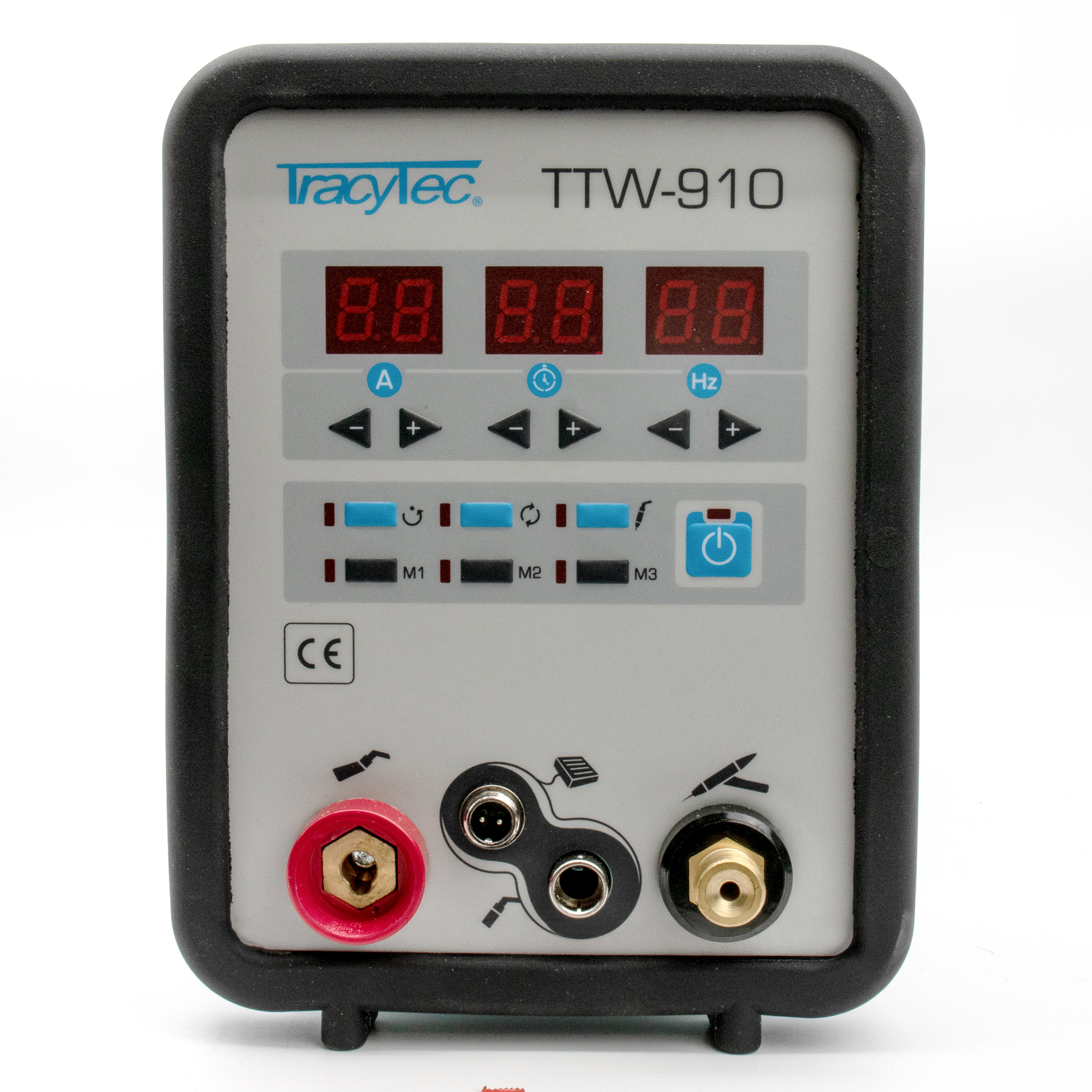

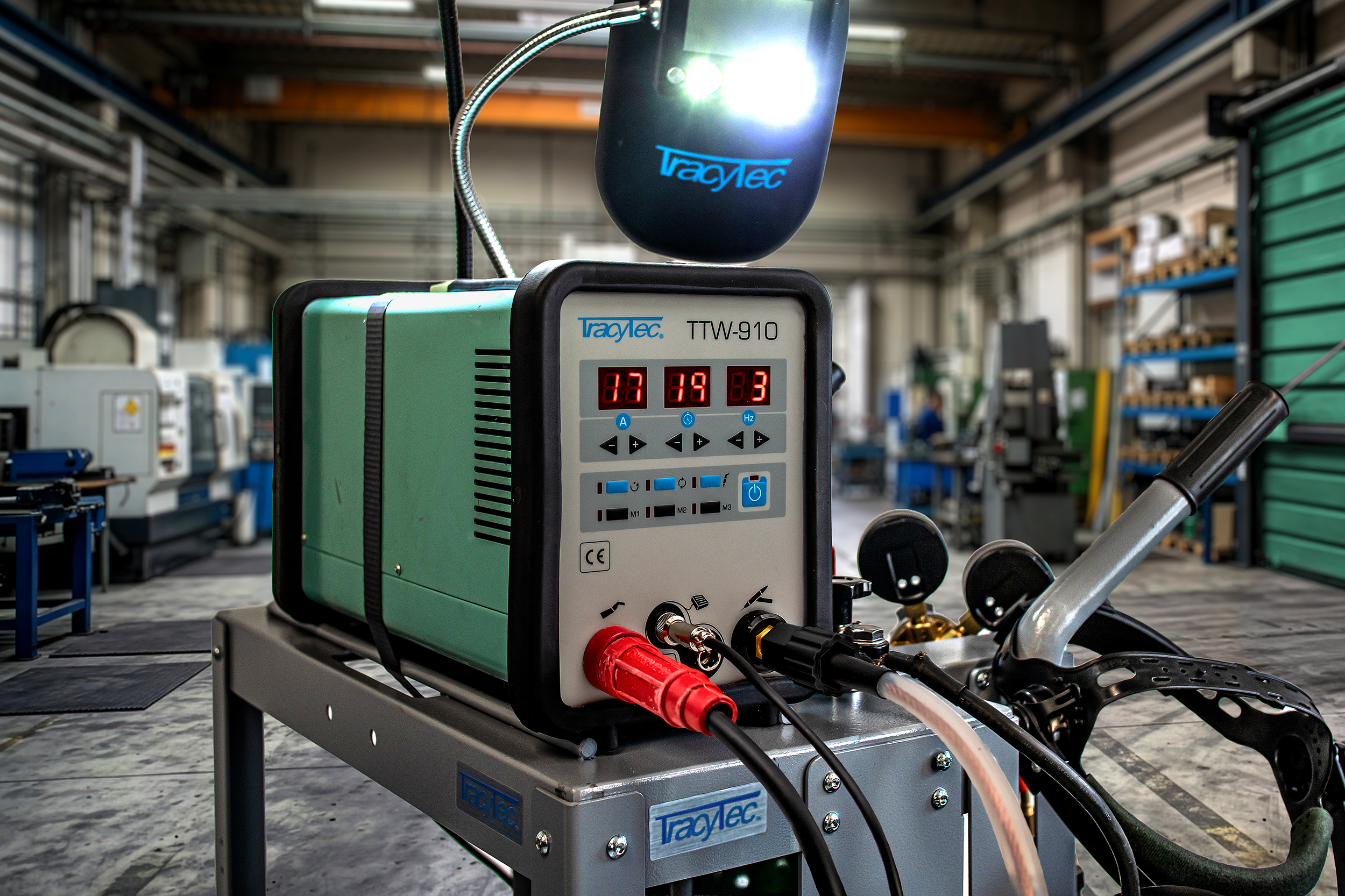

TTW-910
Precision Micro TIG Repair Welder
The TTW-910 is a unique micro TIG welding machine developed specifically for mould and tool repair. Its precise arc produces very limited heat, making it possible to perform detailed repairs while significantly reducing the thermal impact on the surrounding material.
Key Features
✓
Extremely low heat impact
✓
Precise micro TIG welding
✓
Ideal for delicate mould repairs
✓
Welds a wide range of metals
✓
Uses wire from Ø0.1 to 2.5 mm

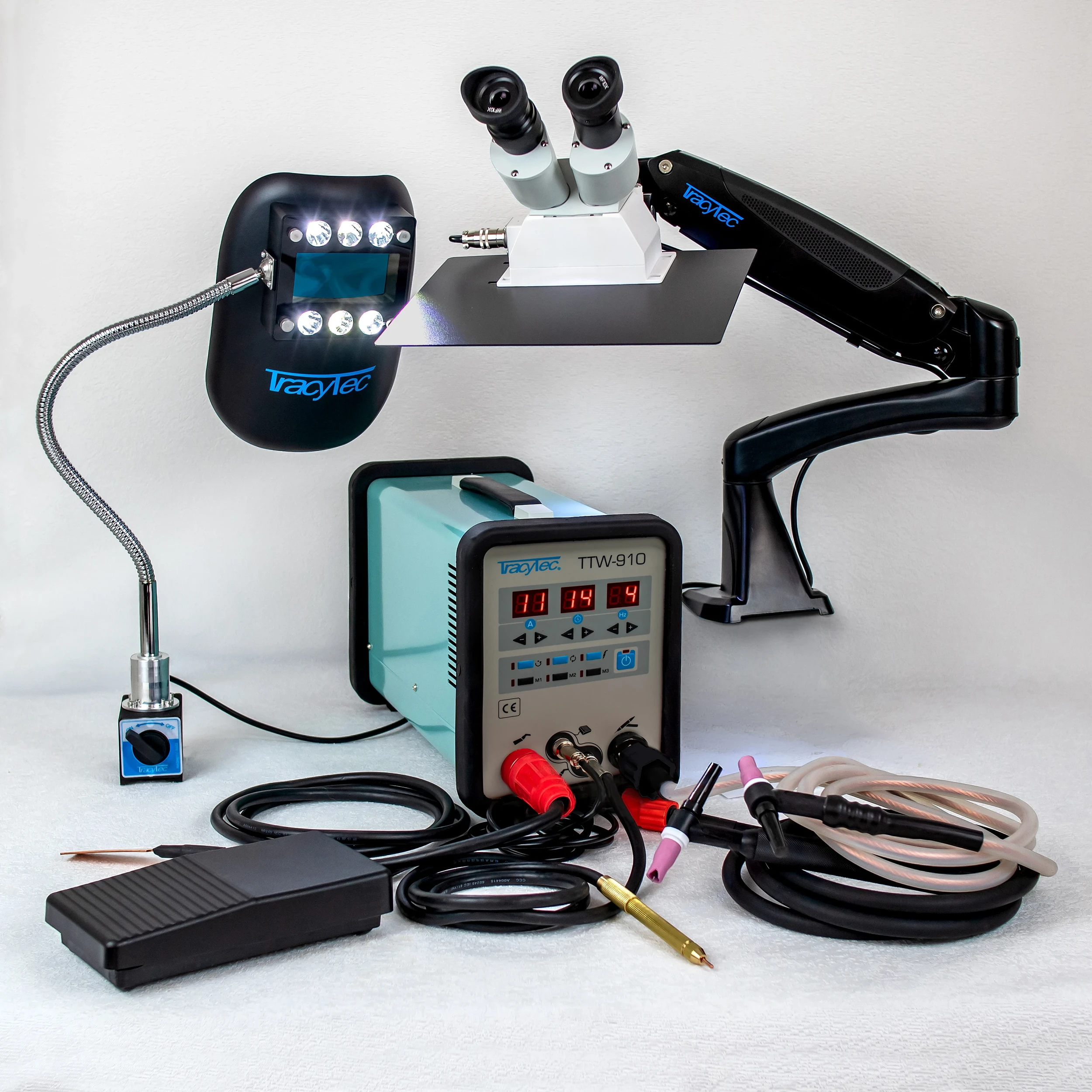

What's included

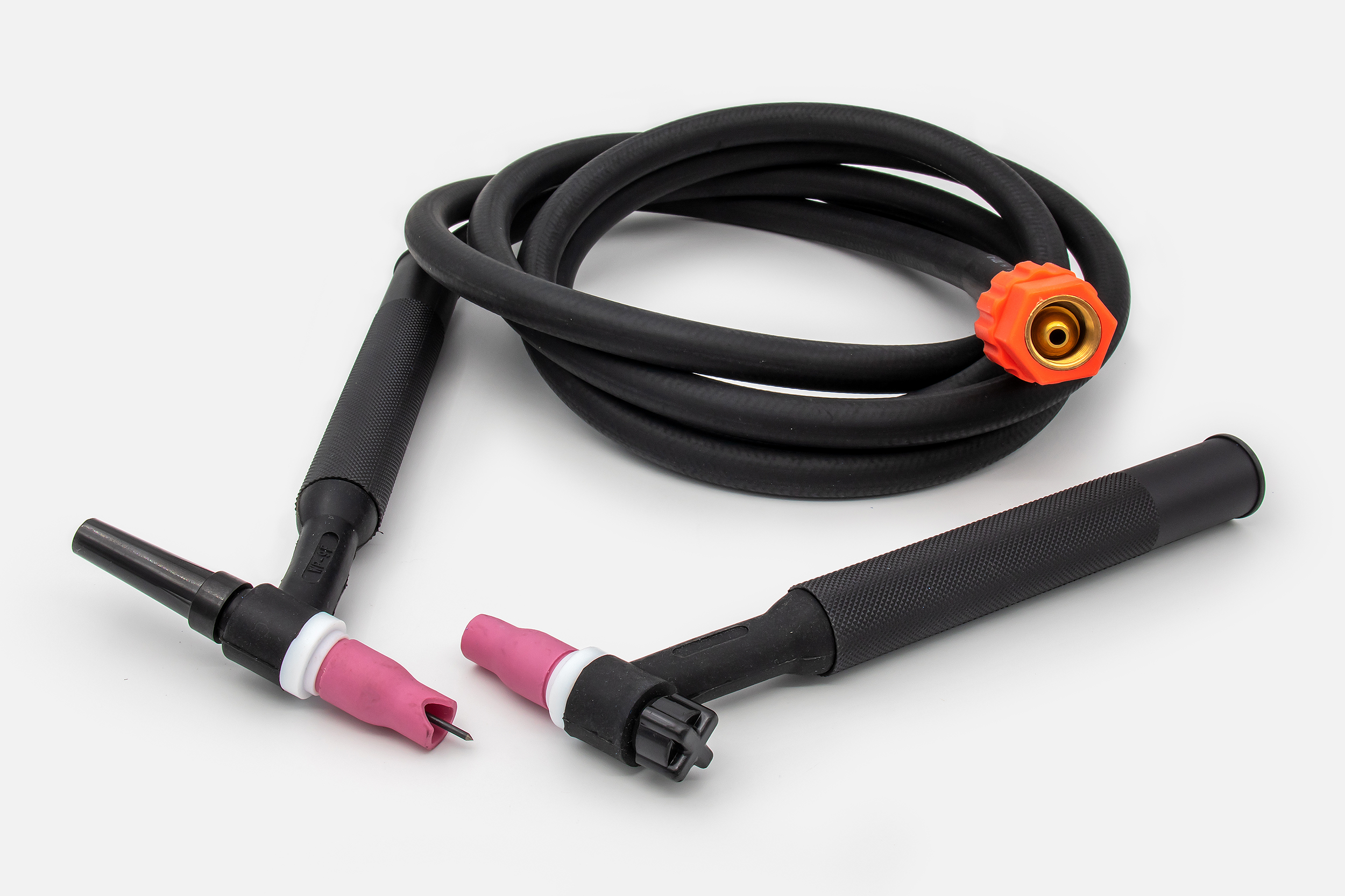

Standard Welding Torch

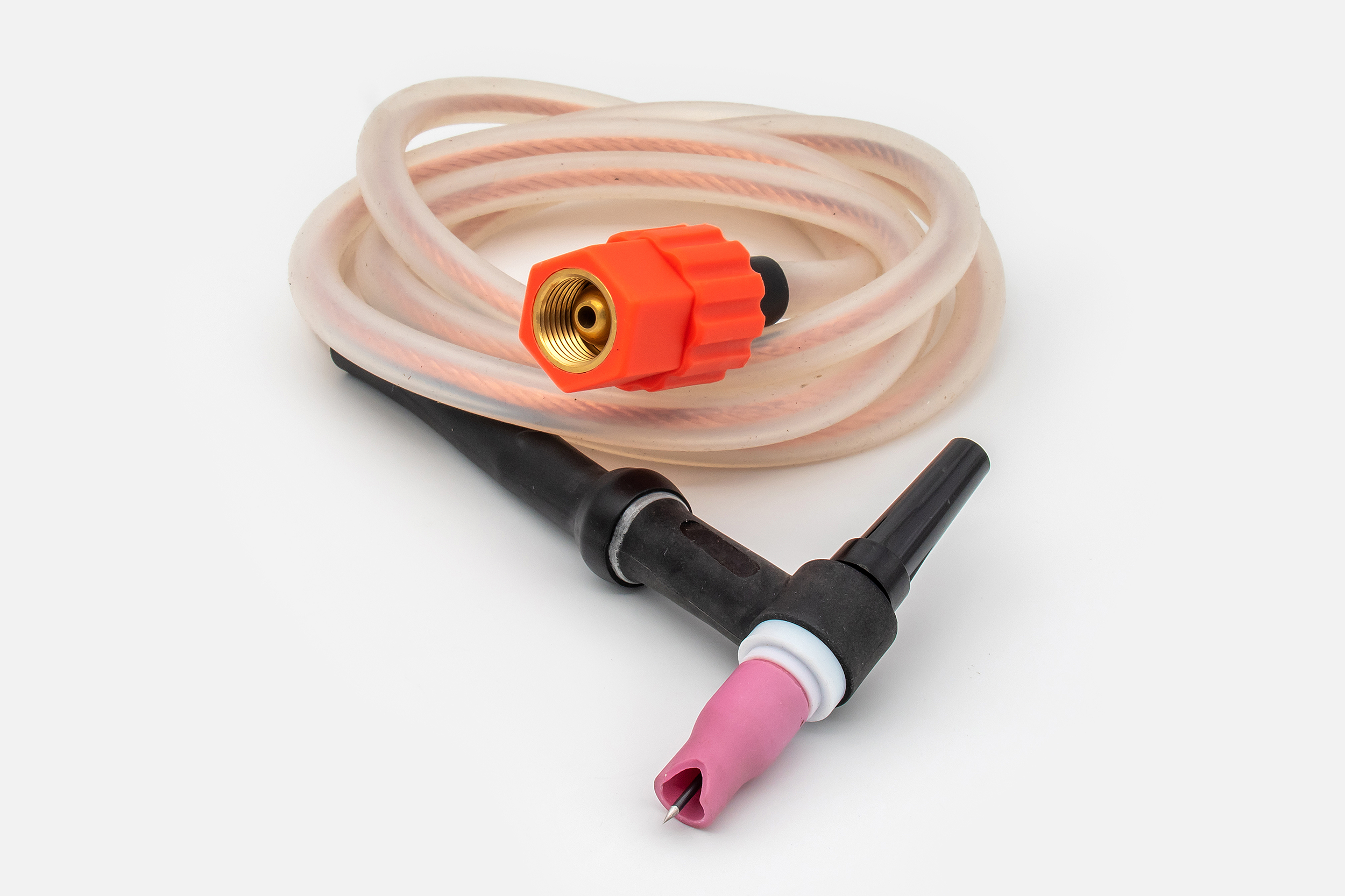

Precision Welding Torch

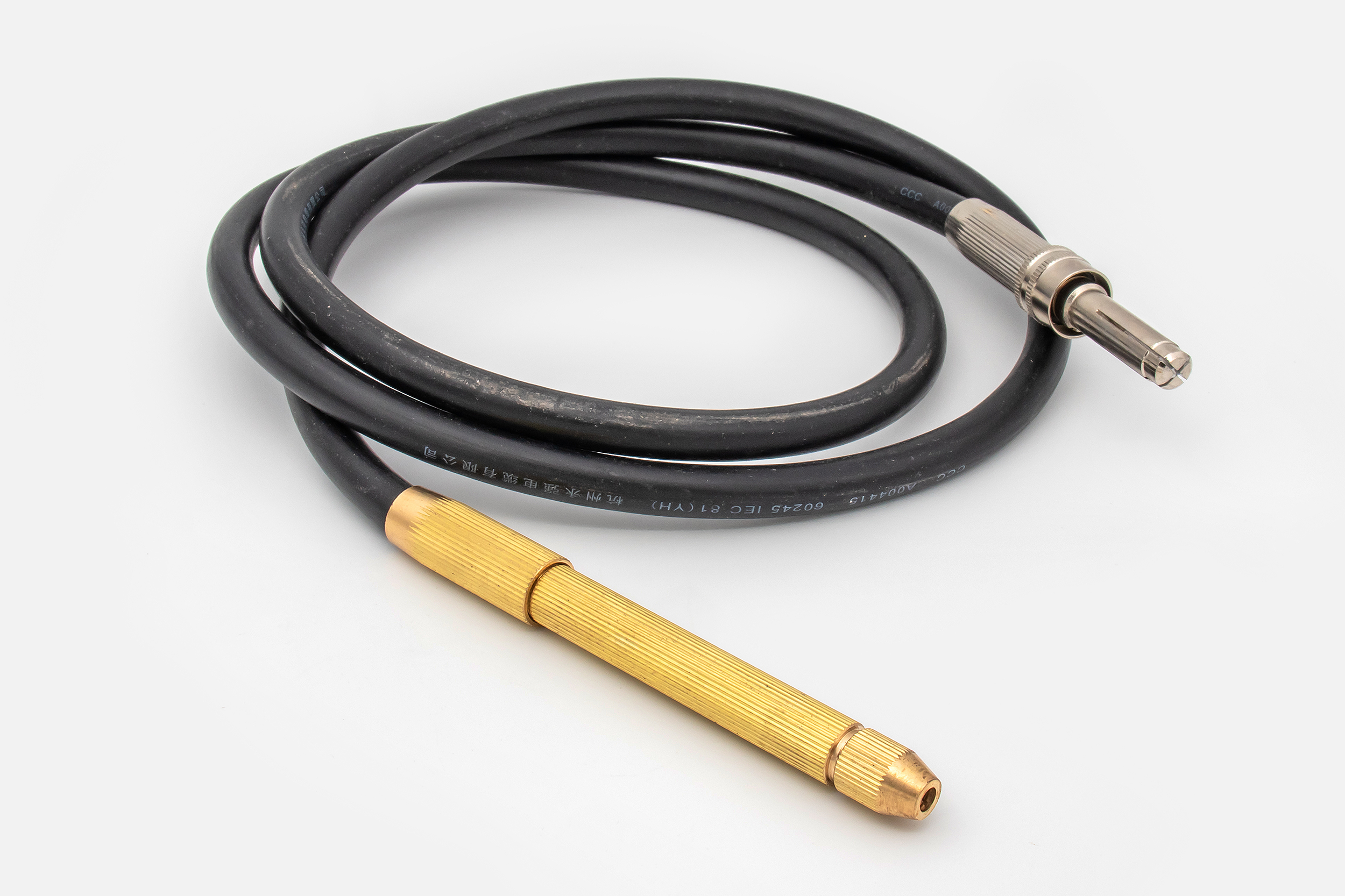

Resistance Welder

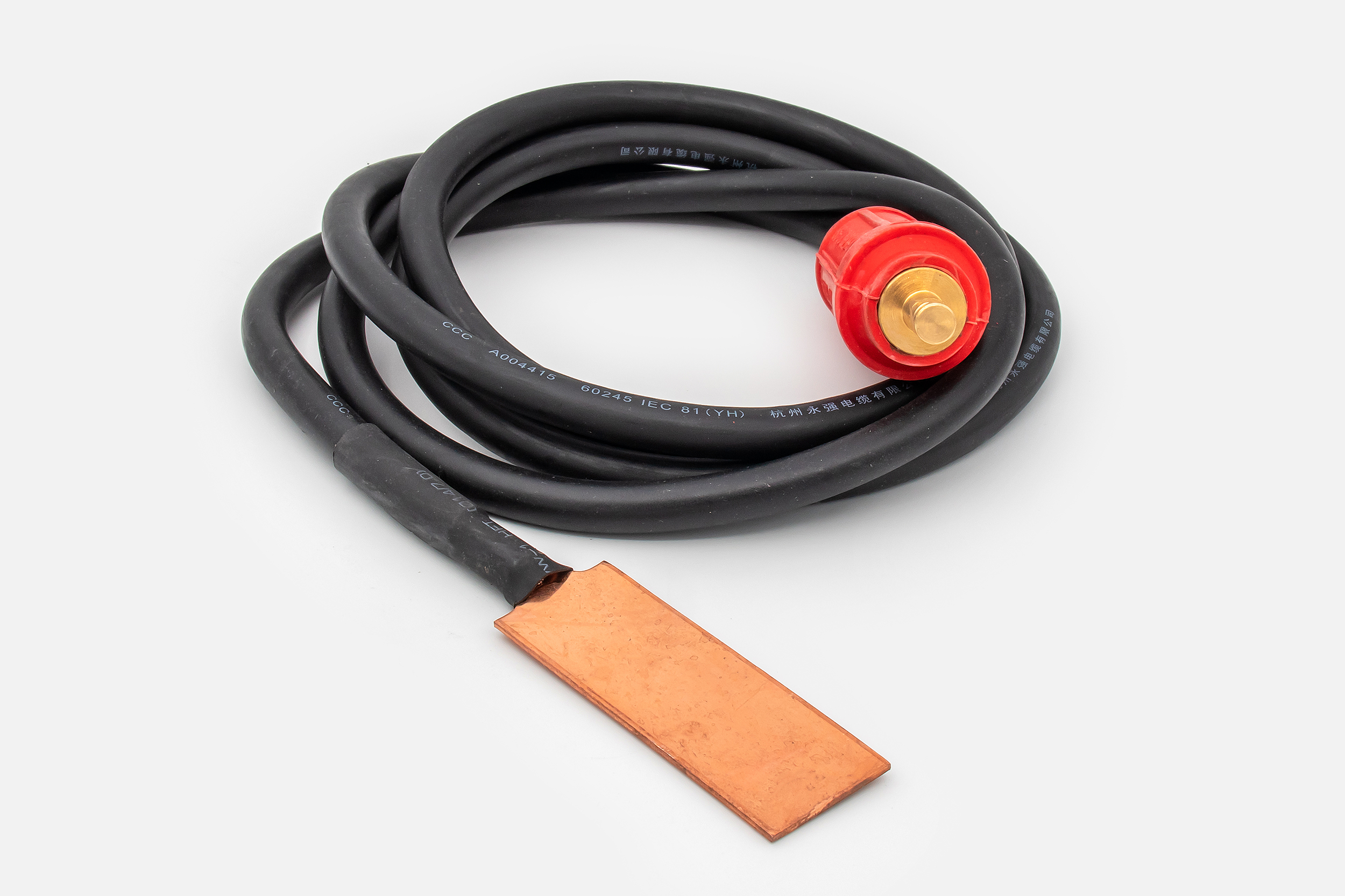

Ground Cable

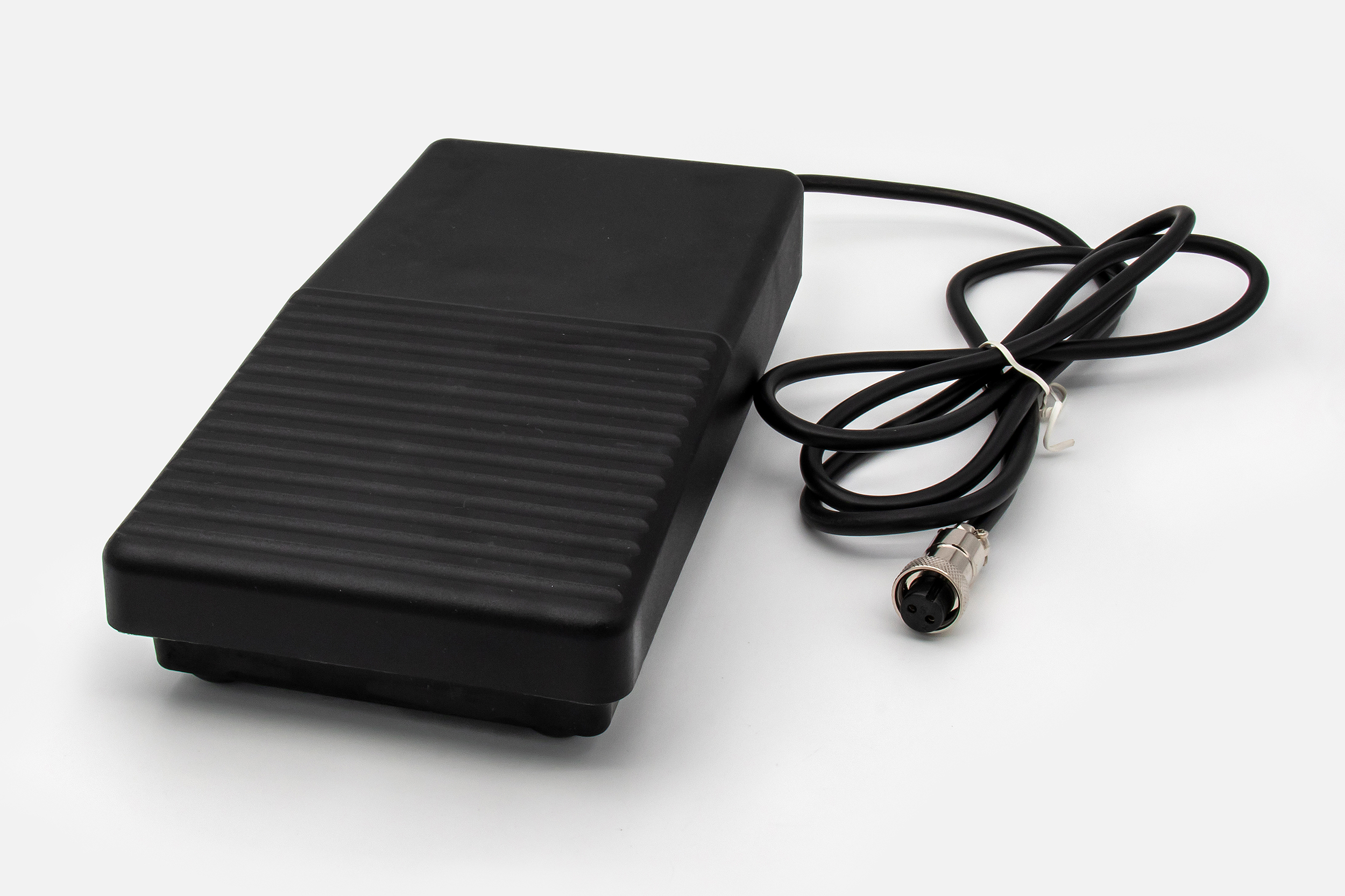

Foot Switch

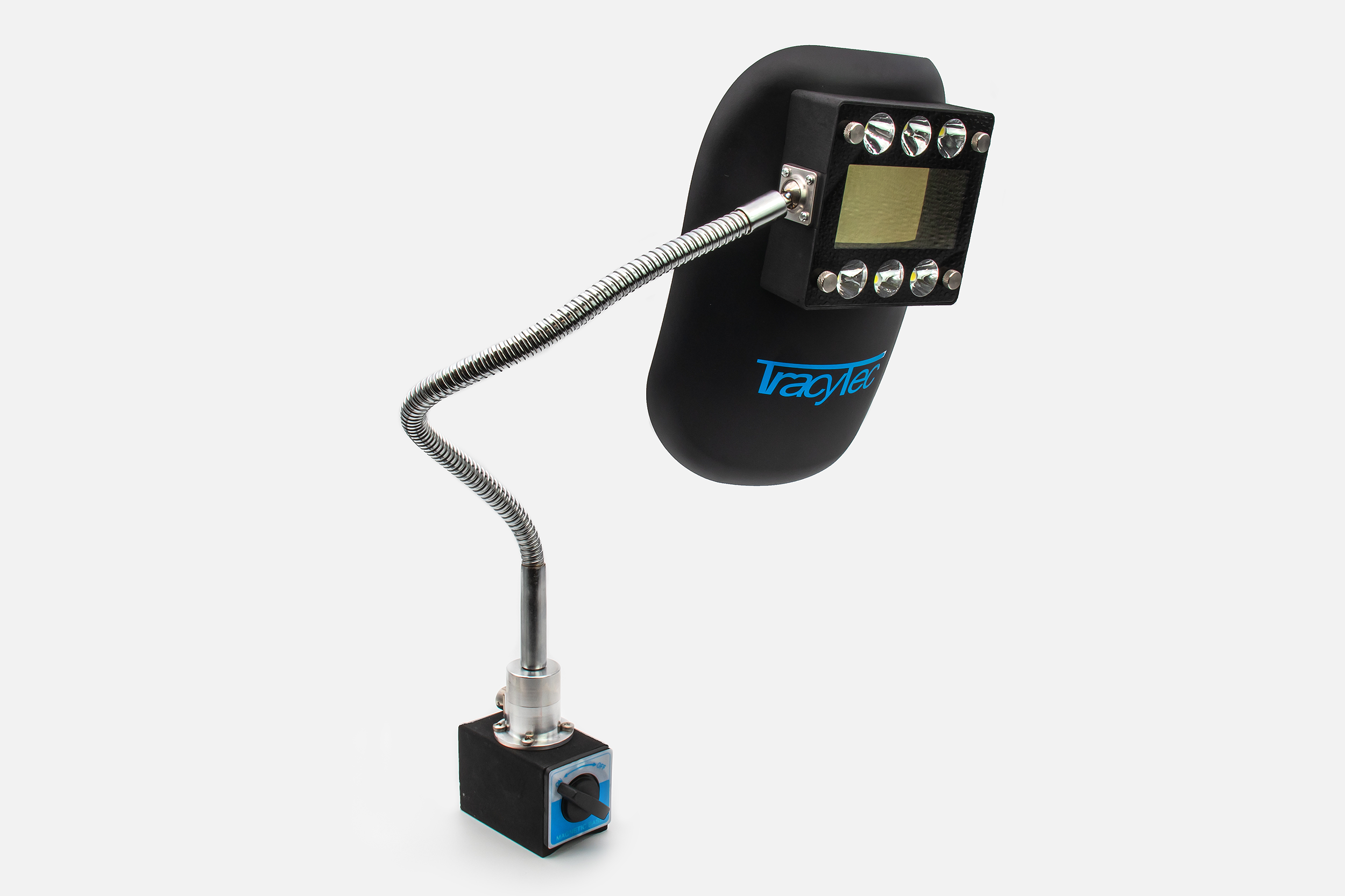

Magnet Foot Goggle Protection

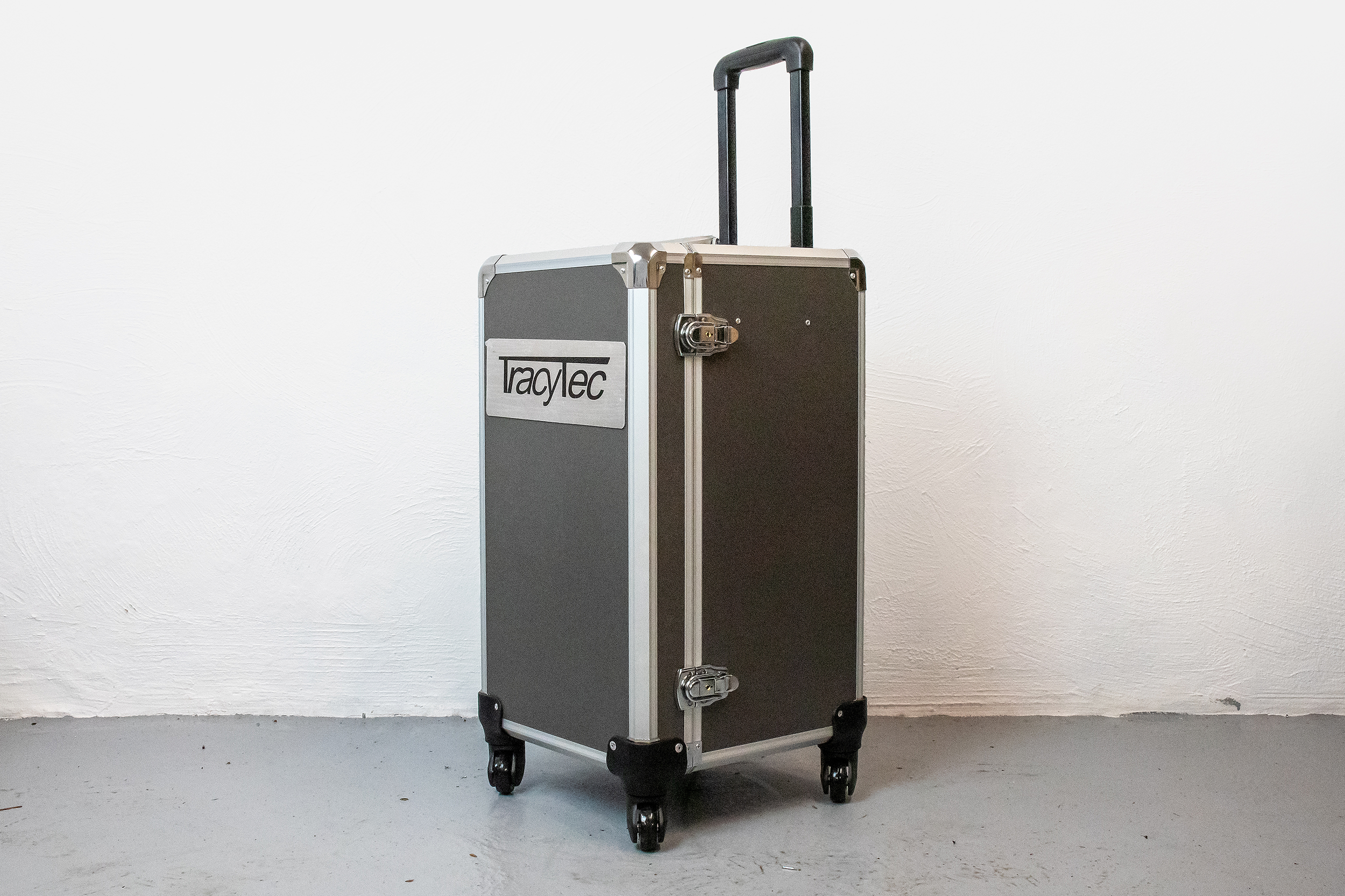

Suitcase
Specifications

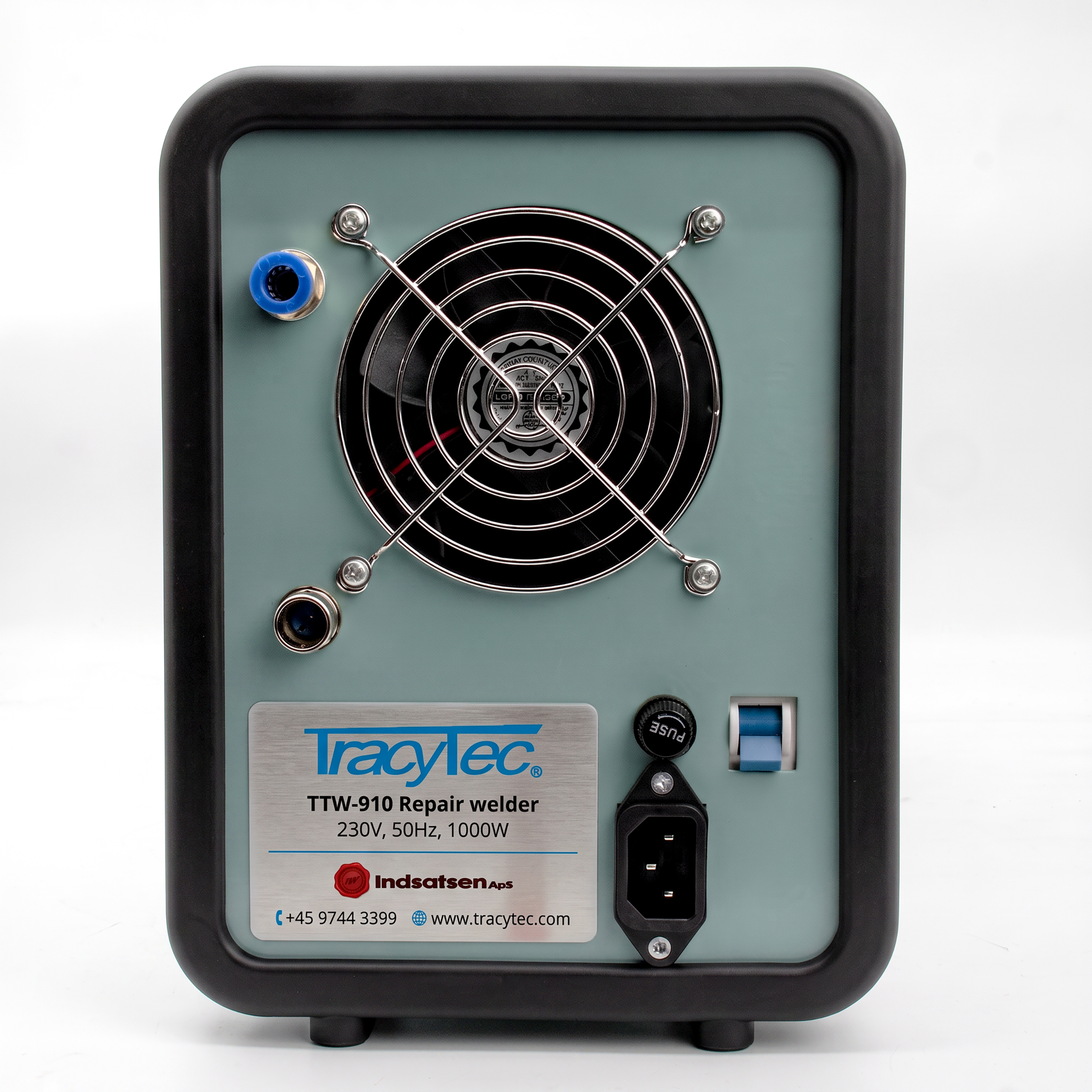

Power voltage
230V, Grounded
Frequency
50 Hz
Power consumption
10 - 1000 W
Dimensions
380 × 150 × 220 mm
Weight
9 kg
Minimal Heat-Affected Area
Unlike conventional TIG welding, the TTW-910 does not create a deep heat-affected layer in the steel. This helps reduce the risk of sink marks, burns and unwanted changes to surrounding details in the mould.

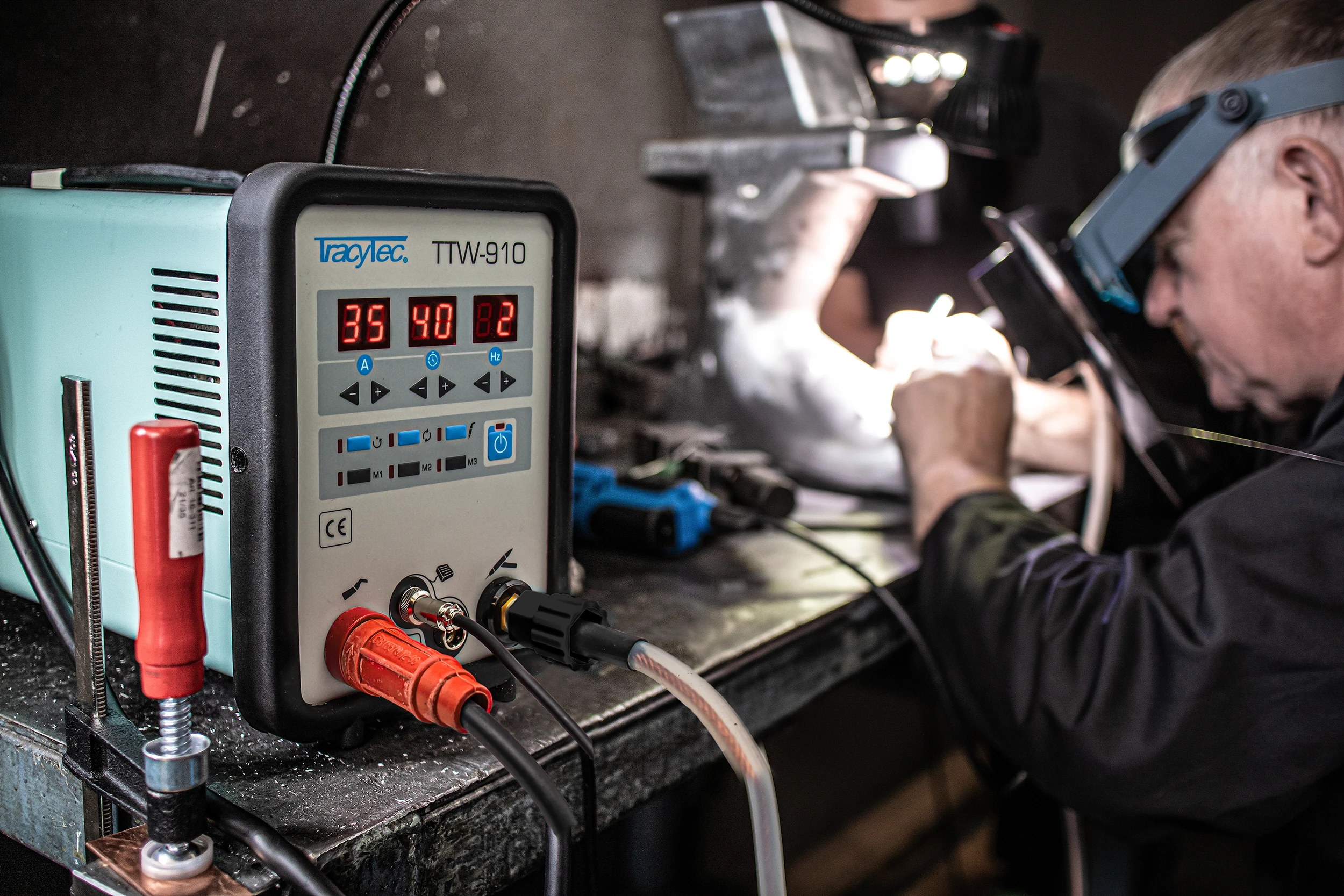

Precise Mould Repair
The controlled welding process makes the TTW-910 particularly suitable for delicate repairs, including mould surfaces, stripper corners, lifters and areas requiring subsequent polishing.
Wide Range of Welding Wires
The TTW-910 can be used with welding wires from Ø0.1 to 2.5 mm, providing flexibility for both very small repairs and larger material build-up.
Suitable for Different Metals
The TTW-910 can be used for repairing a wide range of metals, including iron, steel and aluminium.
